VICTOIRE 1044

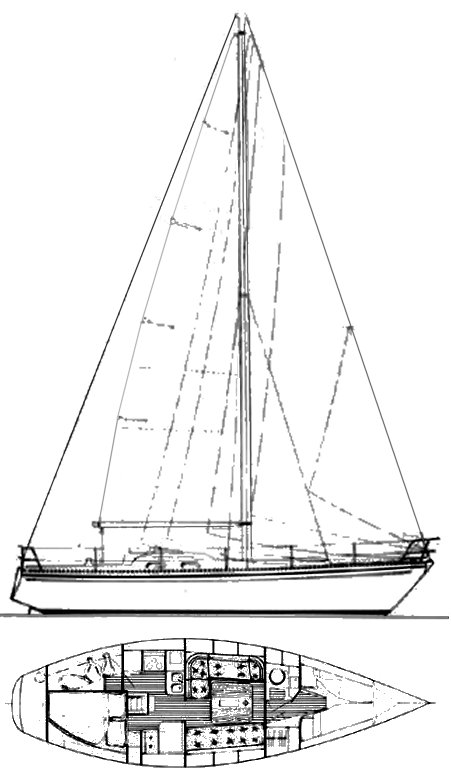

VICTOIRE 1044 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
34.25 ft / 10.44 m
LWL:
27.56 ft / 8.40 m
S.A. (reported):
440.00 ft2 / 40.88 m2
Beam:
10.63 ft / 3.24 m
Draft (max):
6.14 ft / 1.87 m
Draft (min):
Displacement:
12,302 lb / 5,580 kg
Ballast:
6,062 lb / 2,750 kg
S.A./Disp.:
13.26
Bal./Disp.:
49.28
Disp./Len.:
262.36
Construction:
FG
Ballast Type:
First Built:
1986
Last Built:
2005
# Built:
Builder:
Jachtwerf Victoria (NL)
Designer:
D. Koopmans
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
2003
Type:
Diesel
HP:

Sailboat Calculations

S.A./Disp.:
13.26
Bal./Disp.:
49.28
Disp./Len.:
262.36
Comfort Ratio:
27.60

Sailboat Links

Designers:

Notes

Based on the earlier VICTOIRE 34. Thanks to 'Aike' and 'OnnO' for providing corrections.



.
