VICTOIRE 28

Sailboat Specifications

both US imperial metric

Hull Type:

Fin Keel

Rigging Type:

Masthead Sloop

LOA:

28.05 ft / 8.55 m

LWL:

21.98 ft / 6.70 m

Beam:

8.86 ft / 2.70 m

S.A. (reported):

384.00 ft² / 35.67 m²

Draft (max):

4.43 ft / 1.35 m

Displacement:

7,716 lb / 3,500 kg

Ballast:

3,858 lb / 1,750 kg

S.A./Disp.:

15.78

Bal./Disp.:

50.00

Disp./Len.:

324.39

Construction:

FG

First Built:

1967

Last Built:

1975

# Built:

75

Builder:

Victoire Jachtbouw (NL)

Designer:

D. Koopmans Sr.

Auxiliary Power/Tanks (orig. equip.)

Make:

Volvo Penta

Model:

MDB1/MDB2

Type:

Diesel

HP:

13

Sailboat Calculations

Definitions

S.A./Disp.:

15.78

Bal./Disp.:

50.00

Disp./Len.:

324.39

Comfort Ratio:

27.40

Capsize Screening Formula:

1.80

Sailboat Links

Designers:

Dick Koopmans

Builders:

Victoire Yachts (NL)

Associations:

Victoire Club (NL)

Download Boat Record:

PDF

Notes

Thanks to Aike van der Hoeff for providing corrections.
Boats after hull # 25 (1970) have a fin keel and separate rudder on skeg. Draft: 1.45m/4.76'.

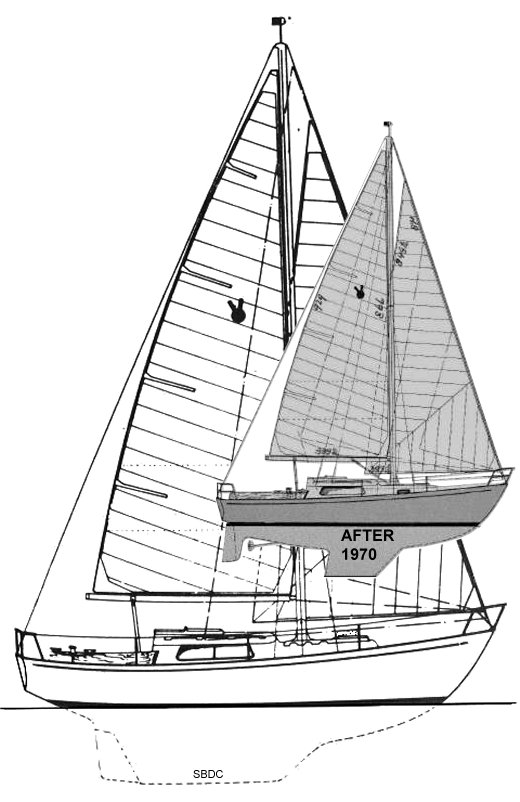

Drawing shows fin keel version. One last boat was completed in 1990.
