VICTOIRE 933

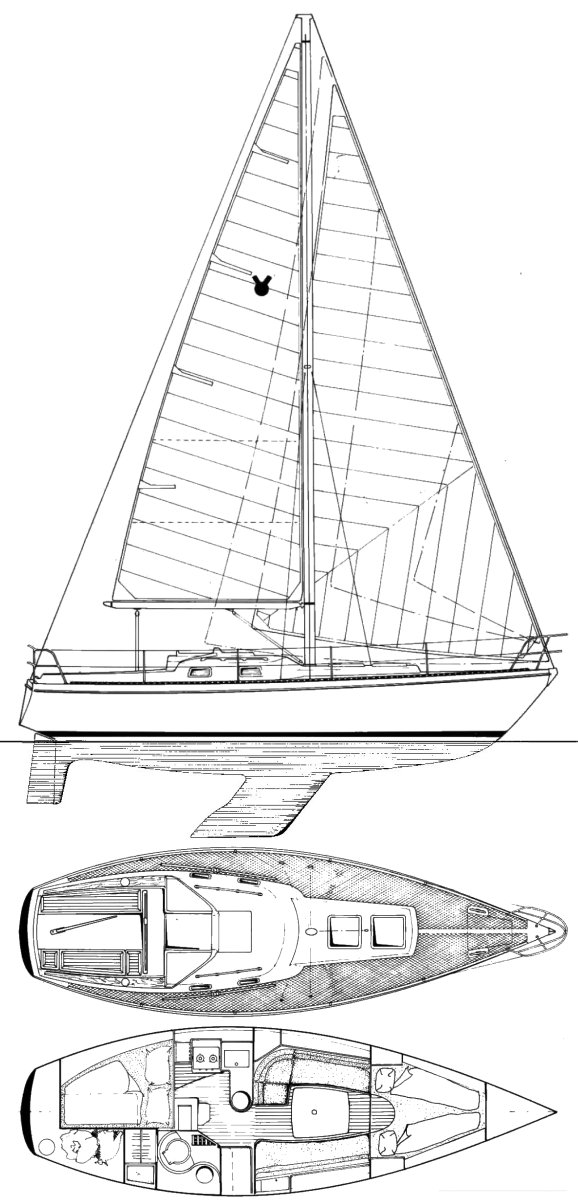

VICTOIRE 933 drawing

Sailboat Specifications


Hull Type:
Fin Keel w/bulb
Rigging Type:
Masthead Sloop
LOA:
30.61 ft / 9.33 m
LWL:
24.93 ft / 7.60 m
S.A. (reported):
428.00 ft2 / 39.76 m2
Beam:
9.68 ft / 2.95 m
Draft (max):
5.90 ft / 1.80 m
Draft (min):
Displacement:
9,920 lb / 4,500 kg
Ballast:
4,230 lb / 1,919 kg
S.A./Disp.:
14.88
Bal./Disp.:
42.64
Disp./Len.:
285.82
Construction:
FG
Ballast Type:
First Built:
1976
Last Built:
# Built:
183
Builder:
Victoire Jachtbouw (NED)
Designer:
Dick Koopmans
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
Type:
Diesel
HP:
Water:
32 gals.
Fuel:
11 gals.

Sailboat Calculations

S.A./Disp.:
14.88
Bal./Disp.:
42.64
Disp./Len.:
285.82
Comfort Ratio:
27.99

Rig and Sail Particulars

I:
37.07 ft / 11.30 m
J:
13.78 ft / 4.20 m
P:
31.82 ft / 9.70 m
E:
10.83 ft / 3.30 m
SPL/TPS:
ISP:
S.A. Fore:
255.41 ft2 / 23.73 m2
S.A. Main:
172.31 ft2 / 16.01 m2
S.A. Total (100% Fore + Main Triangles)
427.72 ft2 / 39.74 m2
S.A./Disp. (calc.):
14.87
Est. Forestay Len.:
39.55 ft / 12.05 m

Sailboat Links

Designers:
Associations:

Notes

Later re-introduced (with significant modifications) as the BREEHORN 31. Thanks to Aike van der Hoeff for providing additional information on this yacht.



.
