Sailboat Specifications
Hull Type:
Long Keel
Rigging Type:
Fractional Sloop
LOA:
35.00 ft / 10.67 m
LWL:
27.00 ft / 8.23 m
Beam:
9.50 ft / 2.90 m
S.A. (reported):
596.00 ft2 / 55.37 m2
Draft (max):
5.58 ft / 1.70 m
Displacement:
16,240 lb / 7,366 kg
Ballast:
6,750 lb / 3,062 kg
S.A./Disp.:
14.92
Bal./Disp.:
41.56
Disp./Len.:
368.34
Construction:
Wood
Ballast Type:
Lead
First Built:
1938
Last Built:
1940
# Built:
39
Builder:
George Lawley (USA)
Designer:
Sparkman & Stephens
Auxiliary Power/Tanks (orig. equip.)
Make:
Gray Marine
Model:
Sea Scout
Type:
Gas
HP:
30
Sailboat Calculations
S.A./Disp.:
14.92
Bal./Disp.:
41.56
Disp./Len.:
368.34
Comfort Ratio:
42.56
Capsize Screening Formula:
1.50
S#:
1.15
Rig and Sail Particulars
I:
35.60 ft / 10.85 m
J:
12.04 ft / 3.67 m
P:
41.33 ft / 12.60 m
E:
17.83 ft / 5.43 m
S.A. Fore:
214.31 ft2 / 19.91 m2
S.A. Main:
368.46 ft2 / 34.23 m2
S.A. Total (100% Fore + Main Triangles)
582.77 ft2 / 54.14 m2
S.A./Disp. (calc.):
14.59
Est. Forestay Len.:
37.58 ft / 11.45 m
Sailboat Links
Designers:
Builders:
Download Boat Record:
Notes

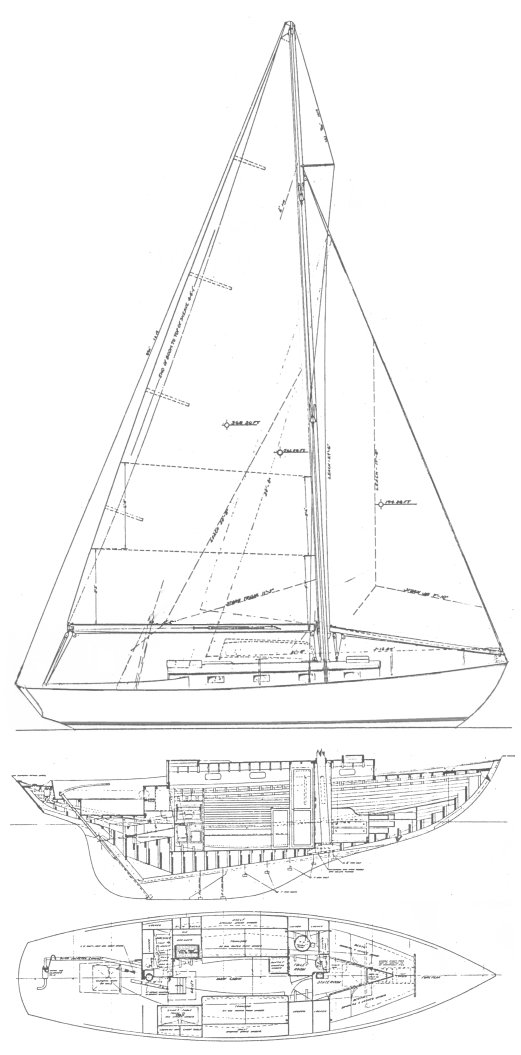

The WEEK-ENDER class was the brain child of Donald Abbott. With almost 40 built, it was a huge success for the time, and a number of these boats are still sailing. Abbott was also responsible for a later version (1941) which was an entirely new design by Rhodes, but few of these were built.The original plans (not shown here) show an alternate "light air rig" with masthead rig and bowsprit.Thanks to Chan Moser for providing images and additional information on this yacht.S&S Design #208.
