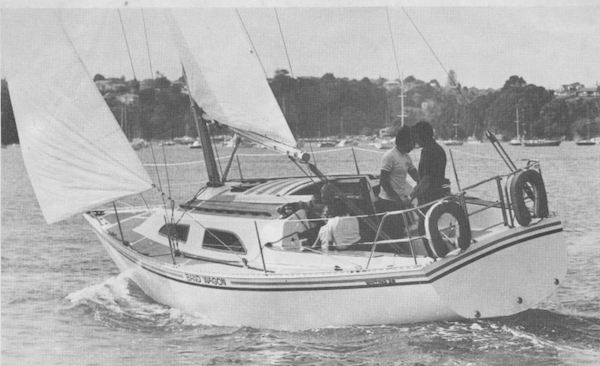

WHITING 29

WHITING 29 drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
LOA:
29.25 ft / 8.92 m
LWL:
24.28 ft / 7.40 m
Beam:
10.25 ft / 3.12 m
S.A. (reported):
426.00 ft2 / 39.58 m2
Draft (max):
5.50 ft / 1.68 m
Draft (min):
Displacement:
7,500 lb / 3,402 kg
Ballast:
3,501 lb / 1,588 kg
S.A./Disp.:
17.85
Bal./Disp.:
46.68
Disp./Len.:
233.92
Construction:
FG
Ballast Type:
First Built:
1979
Last Built:
1990
# Built:
50
Builder:
Designer:
Paul Whiting
Website:

Sailboat Calculations

S.A./Disp.:
17.85
Bal./Disp.:
46.68
Disp./Len.:
233.92
Comfort Ratio:
20.27
Capsize Screening Formula:
2.10

Rig and Sail Particulars

I:
34.88 ft / 10.63 m
J:
11.00 ft / 3.35 m
P:
36.00 ft / 10.97 m
E:
13.00 ft / 3.96 m
SPL/TPS:
ISP:
S.A. Fore:
191.84 ft2 / 17.82 m2
S.A. Main:
234.00 ft2 / 21.74 m2
S.A. Total (100% Fore + Main Triangles)
425.84 ft2 / 39.56 m2
S.A./Disp. (calc.):
17.84
Est. Forestay Len.:
36.57 ft / 11.15 m

Sailboat Links

Designers:

Notes

Masthead a fractional versions.
Rig dims. for masthead sloop:
I:36.45'/11.11m
J:11.00' /3.35m
P:33.00'/10.06m
E:12.00'/3.66m



.
