YEOMAN JUNIOR

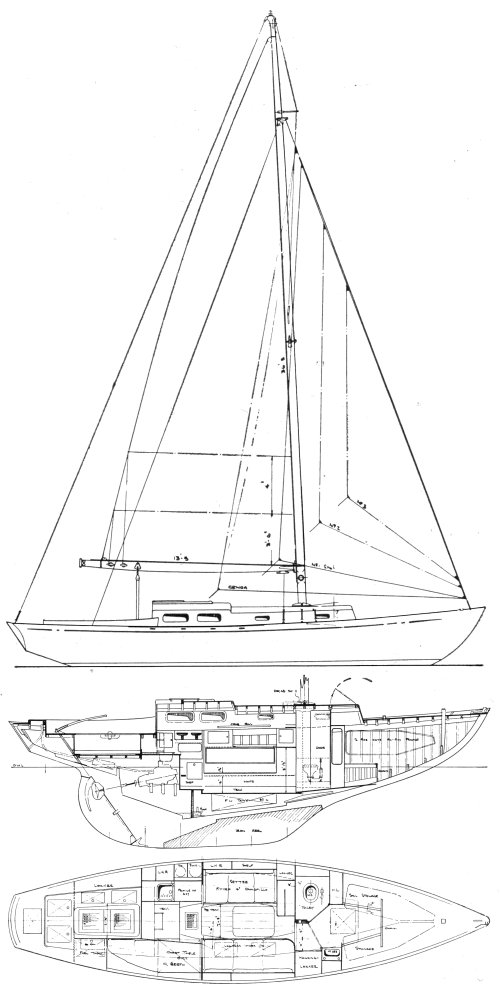

YEOMAN JUNIOR photo YEOMAN JUNIOR drawing

Sailboat Specifications


Hull Type:
Fin Keel
Rigging Type:
Fractional Sloop
LOA:
33.08 ft / 10.08 m
LWL:
24.75 ft / 7.54 m
Beam:
8.50 ft / 2.59 m
S.A. (reported):
469.00 ft2 / 43.57 m2
Draft (max):
5.50 ft / 1.68 m
Displacement:
11,513 lb / 5,222 kg
S.A./Disp.:
14.77
Disp./Len.:
339.01
Construction:
Wood
Ballast Type:
Iron
First Built:
1954
Builder:
R. J. Prior & Son Ltd. (UK)
Designer:
Alan Buchanan

Auxiliary Power/Tanks (orig. equip.)

Make:
Stuart Turner
Type:
Gas
HP:
8

Sailboat Calculations

S.A./Disp.:
14.77
Disp./Len.:
339.01
Comfort Ratio:
37.74
Capsize Screening Formula:
1.51
S#:
1.32

Sailboat Links

Notes

Called simply YEOMAN when first introduced.
