YORKTOWN 35

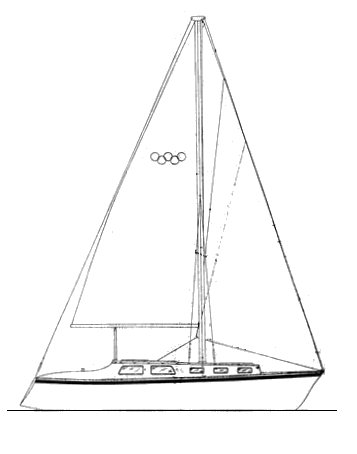

YORKTOWN 35 photo YORKTOWN 35 drawing

Sailboat Specifications


Hull Type:
Fin Keel
Rigging Type:
Masthead Sloop
LOA:
35.00 ft / 10.67 m
LWL:
32.00 ft / 9.75 m
S.A. (reported):
500.00 ft2 / 46.45 m2
Beam:
12.75 ft / 3.89 m
Draft (max):
6.00 ft / 1.83 m
Draft (min):
Displacement:
16,000 lb / 7,257 kg
Ballast:
4,000 lb / 1,814 kg
S.A./Disp.:
12.65
Bal./Disp.:
25.00
Disp./Len.:
217.98
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
# Built:
Builder:
Yorktown Marine Corp (USA)
Designer:
H. McCune
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Perkins
Model:
4-1076
Type:
Diesel
HP:
Water:
40 gals.
Fuel:

Sailboat Calculations

S.A./Disp.:
12.65
Bal./Disp.:
25.00
Disp./Len.:
217.98
Comfort Ratio:
25.33

Rig and Sail Particulars

I:
38.27 ft / 11.66 m
J:
13.00 ft / 3.96 m
P:
34.50 ft / 10.52 m
E:
14.50 ft / 4.42 m
SPL/TPS:
ISP:
S.A. Fore:
248.76 ft2 / 23.11 m2
S.A. Main:
250.13 ft2 / 23.24 m2
S.A. Total (100% Fore + Main Triangles)
498.88 ft2 / 46.35 m2
S.A./Disp. (calc.):
12.62
Est. Forestay Len.:
40.42 ft / 12.32 m

Sailboat Links

Notes

Several different versions were available including flush deck and center cockpit models. Sold for owner completion or finished sailaway. Contact Info. was: Yorktown Yachts 701 Sanford Ave. Wilmington, CA (USA) (not longer in business)



.
