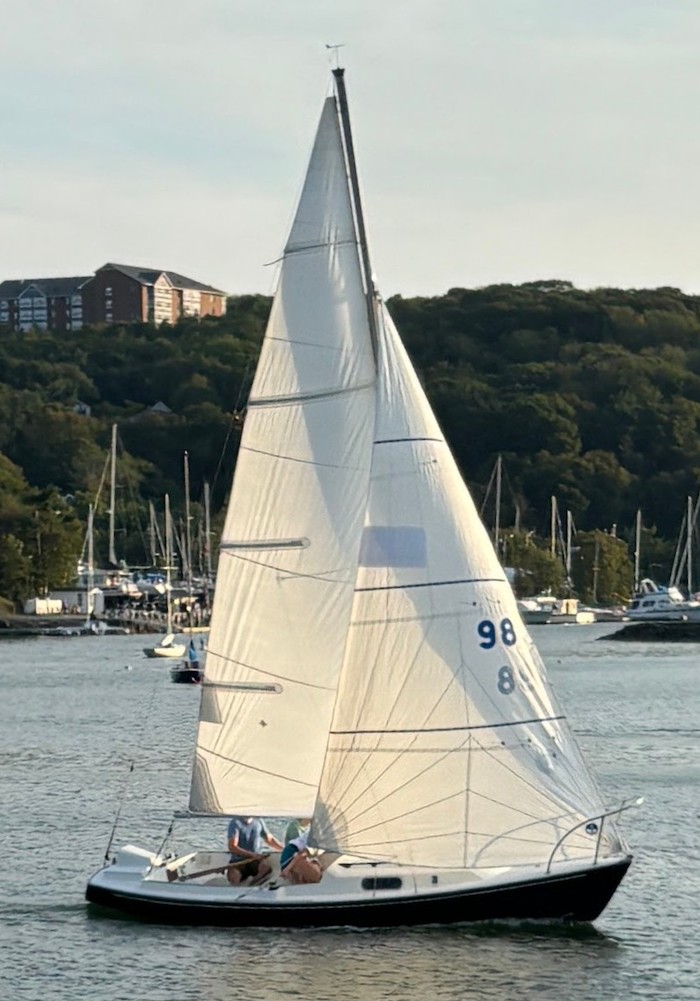

BLUEJACKET 23 (PACESHIP)

BLUEJACKET 23 (PACESHIP)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Fin w/spade rudder
Rigging Type: Fractional Sloop
LOA: 22.83 ft / 6.96 m
LWL: 17.50 ft / 5.33 m
S.A. (reported): 201.00 ft² / 18.67 m²
Beam: 7.00 ft / 2.13 m
Displacement: 2,000.00 lb / 907 kg
Ballast: 900.00 lb / 408 kg
Max Draft: 3.75 ft / 1.14 m
Construction: FG
First Built: 1967
Builder: Paceship Yachts (CAN)
Designer: Cuthbertson & Cassian

Sailboat Calculations

Definitions
S.A. / Displ.: 20.31
Bal. / Displ.: 45.00
Disp: / Len: 166.60
Comfort Ratio: 12.11
Capsize Screening Formula: 2.22
S#: 3.56
Hull Speed: 5.61 kn
Pounds/Inch Immersion: 437.71 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 21.00 ft / 6.40 m
J: 7.50 ft / 2.29 m
P: 25.00 ft / 7.62 m
E: 9.80 ft / 2.99 m
S.A. Fore: 78.75 ft² / 7.32 m²
S.A. Main: 122.50 ft² / 11.38 m²
S.A. Total (100% Fore + Main Triangles): 201.25 ft² / 18.70 m²
S.A./Displ. (calc.): 20.33
Est. Forestay Length: 22.30 ft / 6.80 m

Sailboat Links

Designers: C&C Design
Builders: Paceship Yachts Ltd.
Associations: Paceship/AMF Yachts Website
Related Sailboats: GRAMPIAN 22
CLASSIC 22 (GRAMPIAN)
Download Boat Record:

Notes

The Bluejacket came in two models described as a "Daysailer" and a "MORCEE". The latter was intended to comply with the Midget Ocean Racing Club Rule (MORC) by virtue of its positive flotation (large blocks of foam inside the cockpit seats and in the bow), self-bailing cockpit and enclosed cabin.
Except for the reverse transom, it is similar to the GRAMPIAN 22. Also similar to the CLASSIC 22, VIKING 22 and GAZELLE 22. Thanks to Ken H. for providing additional information on this yacht.
