CONWAY 36 (WESTERLY)

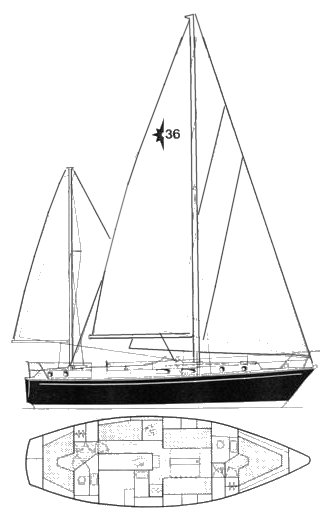

CONWAY 36 (WESTERLY) photo CONWAY 36 (WESTERLY) drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
35.75 ft / 10.90 m
LWL:
30.25 ft / 9.22 m
S.A. (reported):
Beam:
11.15 ft / 3.40 m
Draft (max):
6.00 ft / 1.83 m
Draft (min):
Displacement:
16,128 lb / 7,316 kg
Ballast:
7,168 lb / 3,251 kg
S.A./Disp.:
Bal./Disp.:
44.44
Disp./Len.:
260.11
Construction:
FG
Ballast Type:
First Built:
1975
Last Built:
1978
# Built:
Builder:
Westerly Marine Ltd. (UK)
Designer:
Laurent Giles
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Mercedes
Model:
Type:
Diesel
HP:
Water:
75 gals / 284 L
Fuel:
42 gals / 159 L

Sailboat Calculations

S.A./Disp.:
Bal./Disp.:
44.44
Disp./Len.:
260.11
Comfort Ratio:
31.48

Sailboat Links

Notes

A bilge keel version is called the GALWAY 36. Same hull as GALWAY, SOLWAY, and MEDWAY. Available as sloop or ketch.



.
