DC 20

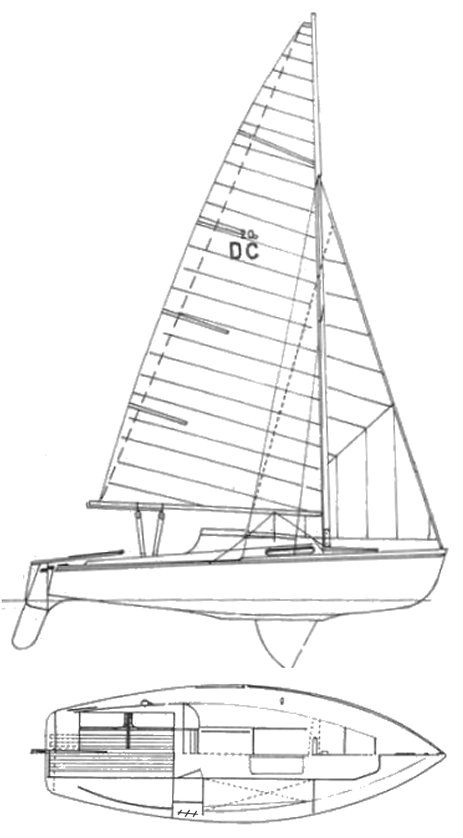

DC 20 photo DC 20 drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Fractional Sloop
LOA:
21.98 ft / 6.70 m
LWL:
18.86 ft / 5.75 m
Beam:
7.38 ft / 2.25 m
S.A. (reported):
225.00 ft2 / 20.90 m2
Draft (max):
3.94 ft / 1.20 m
Draft (min):
1.15 ft / 0.35 m
Displacement:
1,764 lb / 800 kg
Ballast:
309 lb / 140 kg
S.A./Disp.:
24.71
Bal./Disp.:
17.52
Disp./Len.:
117.39
Construction:
FG
Ballast Type:
First Built:
1963
Last Built:
1979
# Built:
400
Builder:
Georges Silvant/Jouët (FRA)
Designer:
Georges Silvant/Jacques Lebrun
Website:

Sailboat Calculations

S.A./Disp.:
24.71
Bal./Disp.:
17.52
Disp./Len.:
117.39
Comfort Ratio:
9.60
Capsize Screening Formula:
2.45

Rig and Sail Particulars

Mast Height from DWL:
31.50 ft / 9.60 m

Sailboat Links

Builders:
Related Sailboats:

Notes

Spinnaker Area:
45m2/484 sq.ft.
