EDEL 5 (540/545)

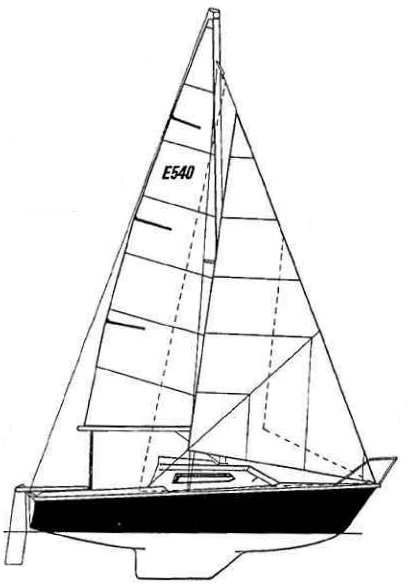

EDEL 5 (540/545) photo EDEL 5 (540/545) drawing

Sailboat Specifications


Hull Type:
Fin w/transom hung rudder
Rigging Type:
Fractional Sloop
LOA:
17.71 ft / 5.40 m
LWL:
14.75 ft / 4.50 m
S.A. (reported):
162.00 ft2 / 15.05 m2
Beam:
8.00 ft / 2.44 m
Draft (max):
2.29 ft / 0.70 m
Draft (min):
Displacement:
1,711 lb / 776 kg
Ballast:
331 lb / 150 kg
S.A./Disp.:
18.16
Bal./Disp.:
19.35
Disp./Len.:
238.03
Construction:
FG
Ballast Type:
First Built:
1974
Last Built:
1983
# Built:
2500
Builder:
Edel (FRA), Edel (CAN)
Designer:
Maurice Edel
Website:

Sailboat Calculations

S.A./Disp.:
18.16
Bal./Disp.:
19.35
Disp./Len.:
238.03
Comfort Ratio:
10.59

Sailboat Links

Builders:

Notes

Called the EDEL 545 in France. Edel's were manfactured in Canada and France between '78 and '82 by the French parent firm, and its Canadian subsidiary. Sometime later, the Canadian molds were bought by Stanley Hatch Industries which built a few more before closing in the late '80's. In France, three version were available, Standard, Dayboat, and GTE.



.
