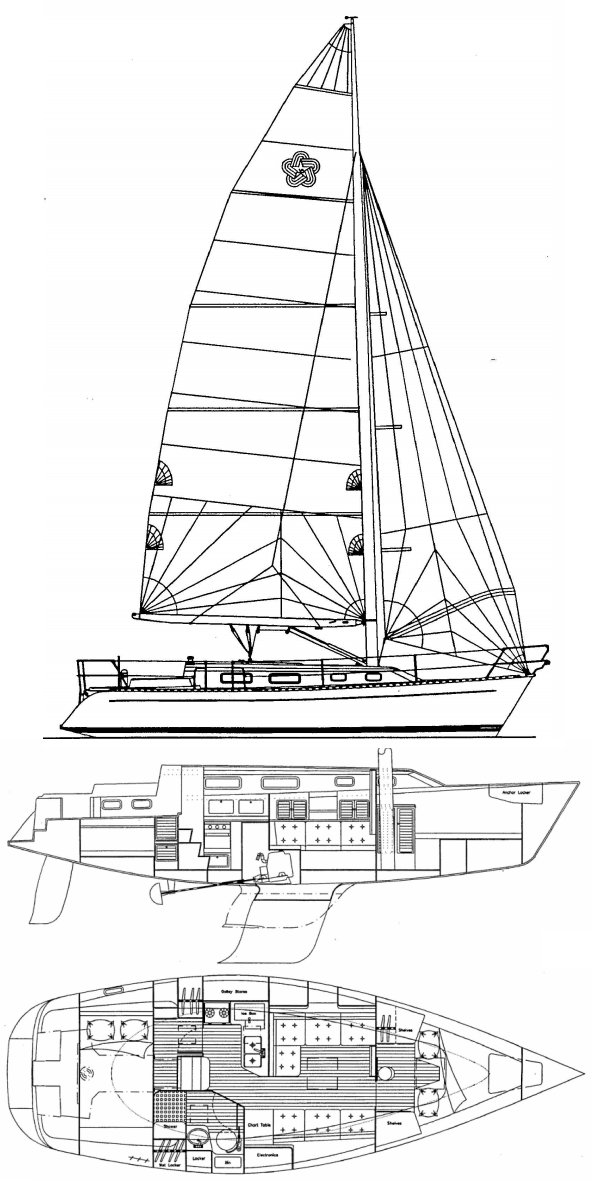

FREEDOM 35 (PEDRICK)

FREEDOM 35 (PEDRICK)
FREEDOM 35 (PEDRICK)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Fin w/spade rudder
Rigging Type: Frac. Sloop (Free standing)
LOA: 35.40 ft / 10.79 m
LWL: 29.90 ft / 9.11 m
S.A. (reported): 609.00 ft² / 56.58 m²
Beam: 12.00 ft / 3.66 m
Displacement: 14,611.00 lb / 6,627 kg
Ballast: 4,465.00 lb / 2,025 kg
Max Draft: 6.50 ft / 1.98 m
Construction: FG
Ballast Type: Lead
First Built: 1993
Builder: Freedom Yachts (USA)
Designer: David Pedrick

Auxiliary Power/Tanks (orig. equip.)

Make: Yanmar
Model: 3GM30F
Type: Diesel
HP: 27
Fuel: 35 gals / 132 L

Accomodations

Water: 70 gals / 265 L

Sailboat Calculations

Definitions
S.A. / Displ.: 16.36
Bal. / Displ.: 30.56
Disp: / Len: 244.02
Comfort Ratio: 26.15
Capsize Screening Formula: 1.97
S#: 2.17
Hull Speed: 7.33 kn
Pounds/Inch Immersion: 1,282.03 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 39.90 ft / 12.16 m
J: 11.50 ft / 3.51 m
P: 45.20 ft / 13.78 m
E: 16.80 ft / 5.12 m
S.A. Fore: 229.43 ft² / 21.31 m²
S.A. Main: 379.68 ft² / 35.27 m²
S.A. Total (100% Fore + Main Triangles): 609.11 ft² / 56.59 m²
S.A./Displ. (calc.): 16.37
Est. Forestay Length: 41.52 ft / 12.66 m
Mast Height from DWL: 54.50 ft / 16.61 m

Sailboat Links

Designers: David Pedrick
Builders: Freedom Yachts
Download Boat Record:

Notes

Winged keel version - draft:4.5'
