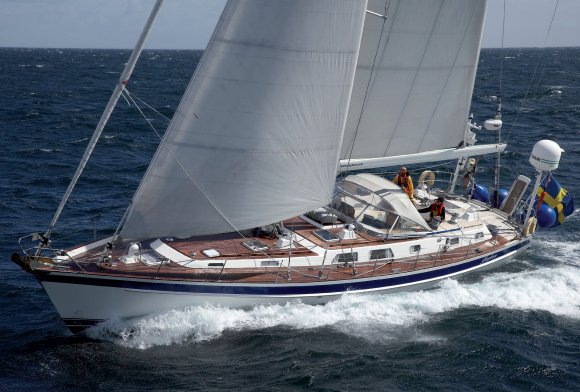

HALLBERG-RASSY 62

HALLBERG-RASSY 62
HALLBERG-RASSY 62

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Cutter
LOA: 61.94 ft / 18.88 m
LWL: 50.20 ft / 15.30 m
S.A. (reported): 1,829.00 ft² / 169.92 m²
Beam: 16.90 ft / 5.15 m
Displacement: 72,752.00 lb / 33,000 kg
Ballast: 24,251.00 lb / 11,000 kg
Max Draft: 8.20 ft / 2.50 m
Construction: FG
Ballast Type: Lead
First Built: 1997
Last Built: 2011
# Built: 25
Builder: Hallberg-Rassy (SWE)
Designer: German Frers

Auxiliary Power/Tanks (orig. equip.)

Make: Perkins
Model: M225Ti
Type: Diesel
Fuel: 425 gals / 1,609 L

Accomodations

Water: 412 gals / 1,560 L

Sailboat Calculations

Definitions
S.A. / Displ.: 16.87
Bal. / Displ.: 33.33
Disp: / Len: 256.74
Comfort Ratio: 48.49
Capsize Screening Formula: 1.62
S#: 2.15
Hull Speed: 9.49 kn
Pounds/Inch Immersion: 3,031.36 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 81.27 ft / 24.77 m
J: 25.13 ft / 7.66 m
P: 71.46 ft / 21.78 m
E: 24.38 ft / 7.43 m
S.A. Fore: 1,021.16 ft² / 94.87 m²
S.A. Main: 871.10 ft² / 80.93 m²
S.A. Total (100% Fore + Main Triangles): 1,892.26 ft² / 175.80 m²
S.A./Displ. (calc.): 17.45
Est. Forestay Length: 85.07 ft / 25.93 m
