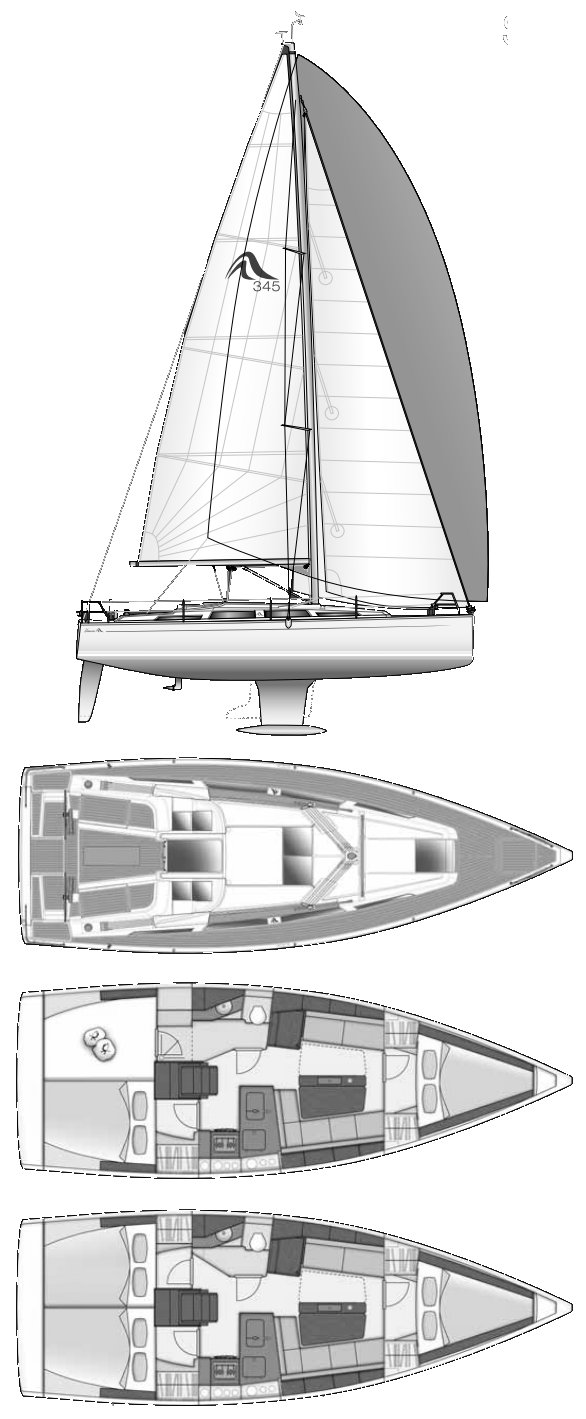

Sailboat Specifications

Definitions
Hull Type: Fin w/bulb & spade rudder
Rigging Type: Fractional Sloop
LOA: 34.12 ft / 10.40 m
LWL: 31.33 ft / 9.55 m
S.A. (reported): 592.02 ft² / 55.00 m²
Beam: 11.48 ft / 3.50 m
Displacement: 13,669.00 lb / 6,200 kg
Ballast: 4,475.00 lb / 2,030 kg
Max Draft: 6.14 ft / 1.87 m
Construction: FG
Ballast Type: Iron
First Built: 2012
Last Built: 2017
Builder: Hanse Yachts
Designer: Judel/Vrolijk

Auxiliary Power/Tanks (orig. equip.)

Make: Volvo
Type: Diesel
HP: 18
Fuel: 42 gals / 160 L

Accomodations

Water: 61 gals / 230 L

Sailboat Calculations

Definitions
S.A. / Displ.: 16.63
Bal. / Displ.: 32.74
Disp: / Len: 198.43
Comfort Ratio: 25.45
Capsize Screening Formula: 1.92
S#: 2.63
Hull Speed: 7.50 kn
Pounds/Inch Immersion: 1,285.13 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 43.96 ft / 13.40 m
J: 12.73 ft / 3.88 m
P: 41.67 ft / 12.70 m
E: 14.27 ft / 4.35 m
S.A. Fore: 279.81 ft² / 26.00 m²
S.A. Main: 297.32 ft² / 27.62 m²
S.A. Total (100% Fore + Main Triangles): 577.13 ft² / 53.62 m²
S.A./Displ. (calc.): 16.21
Est. Forestay Length: 45.77 ft / 13.95 m
Mast Height from DWL: 51.67 ft / 15.75 m

Sailboat Links

Designers: Judel/Vrolijk & Co.
Builders: Hanse Yachts
Download Boat Record:

Notes

LOD: 9.99m / 32.77 ft
Shallow keel - draft: 1.55 m | 55.08´; Ballast: 2,200 kg / 4,840 lbs

Gennaker 85.00 m² | 914 sq.ft.
