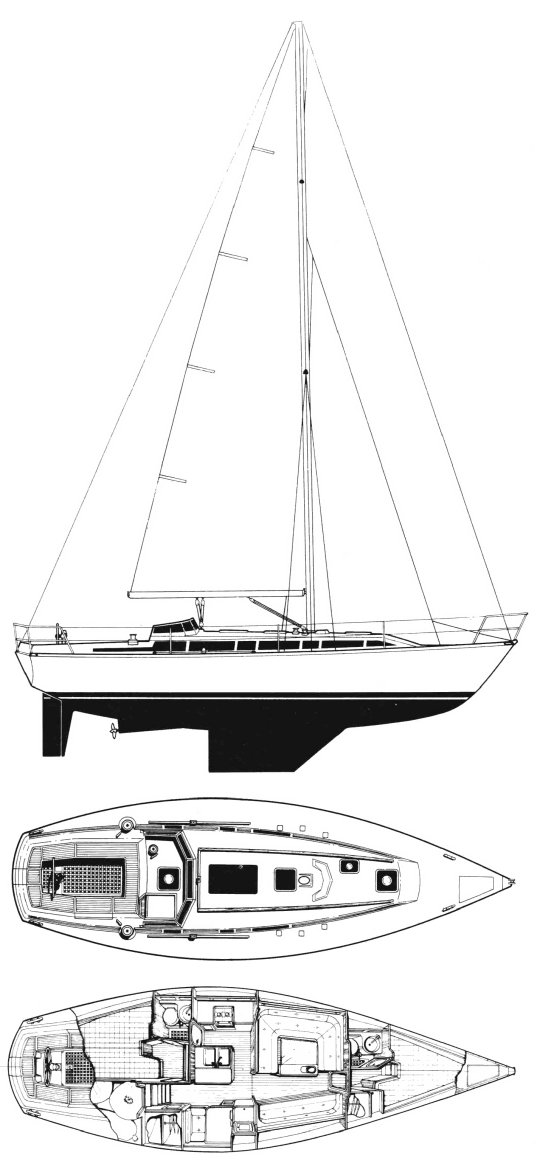

IDYLLE 1350 (BENETEAU)

IDYLLE 1350 (BENETEAU)
IDYLLE 1350 (BENETEAU)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 44.29 ft / 13.50 m
LWL: 34.45 ft / 10.50 m
S.A. (reported): 729.80 ft² / 67.80 m²
Beam: 13.45 ft / 4.10 m
Displacement: 22,046.00 lb / 10,000 kg
Ballast: 8,377.00 lb / 3,800 kg
Max Draft: 5.77 ft / 1.76 m
Construction: FG
First Built: 1983
Builder: Beneteau (FRA)
Designer: German Frers

Auxiliary Power/Tanks (orig. equip.)

Make: Perkins
Model: 4108
Type: Diesel
HP: 50
Fuel: 53 gals / 200 L

Accomodations

Water: 159 gals / 600 L

Sailboat Calculations

Definitions
S.A. / Displ.: 14.91
Bal. / Displ.: 38.00
Disp: / Len: 240.72
Comfort Ratio: 28.60
Capsize Screening Formula: 1.92
S#: 2.16
Hull Speed: 7.87 kn
Pounds/Inch Immersion: 1,655.61 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 52.88 ft / 16.12 m
J: 16.79 ft / 5.12 m
P: 46.58 ft / 14.20 m
E: 14.59 ft / 4.45 m
S.A. Fore: 443.93 ft² / 41.24 m²
S.A. Main: 339.80 ft² / 31.57 m²
S.A. Total (100% Fore + Main Triangles): 783.73 ft² / 72.81 m²
S.A./Displ. (calc.): 16.01
Est. Forestay Length: 55.48 ft / 16.91 m

Sailboat Links

Designers: German Frers
Builders: Beneteau
Download Boat Record:

Notes

Hull length: 12.9m / 42.32ft
Shorter rig:
I: 48.8
J: 16.59
P: 41.8
E: 14.3
A variation on this model was built for the 'The Moorings' Charter Company.(MOORINGS 43?).
