KONSORT 29 DUO (WESTERLY)

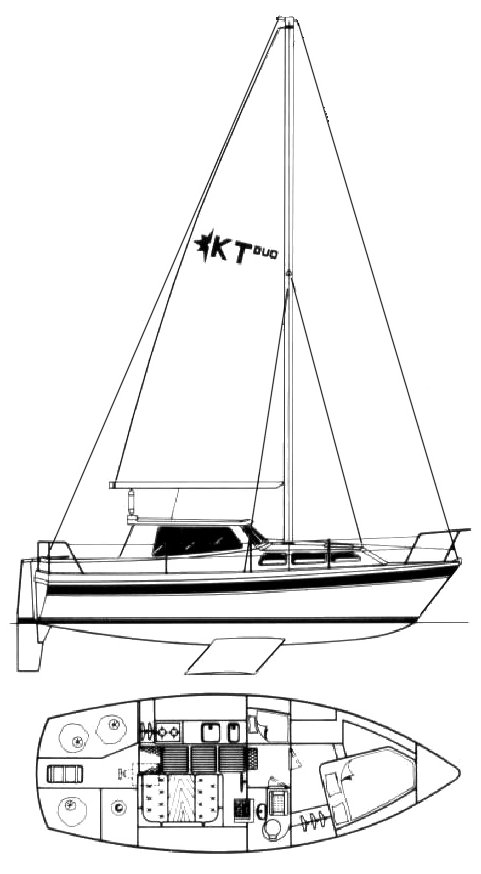

KONSORT 29 DUO (WESTERLY) photo KONSORT 29 DUO (WESTERLY) drawing

Sailboat Specifications


Hull Type:
Twin Keel
Rigging Type:
Masthead Sloop
LOA:
28.83 ft / 8.79 m
LWL:
25.67 ft / 7.82 m
S.A. (reported):
325.00 ft2 / 30.19 m2
Beam:
10.75 ft / 3.28 m
Draft (max):
3.33 ft / 1.01 m
Draft (min):
Displacement:
10,100 lb / 4,581 kg
Ballast:
3,200 lb / 1,451 kg
S.A./Disp.:
11.17
Bal./Disp.:
31.68
Disp./Len.:
266.56
Construction:
FG
Ballast Type:
Iron
First Built:
1984
Last Built:
1988
# Built:
108
Builder:
Westerly Marine Ltd. (UK)
Designer:
Laurent Giles
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Volvo Penta
Model:
2003
Type:
Diesel
HP:
28

Sailboat Calculations

S.A./Disp.:
11.17
Bal./Disp.:
31.68
Disp./Len.:
266.56
Comfort Ratio:
24.80

Rig and Sail Particulars

I:
37.50 ft / 11.43 m
J:
11.25 ft / 3.43 m
P:
31.30 ft / 9.54 m
E:
11.50 ft / 3.51 m
SPL/TPS:
ISP:
S.A. Fore:
210.94 ft2 / 19.60 m2
S.A. Main:
179.98 ft2 / 16.72 m2
S.A. Total (100% Fore + Main Triangles)
390.91 ft2 / 36.32 m2
S.A./Disp. (calc.):
13.43
Est. Forestay Len.:
39.15 ft / 11.93 m

Sailboat Links

Notes

The KONSORT 29 DUO is a Pilothouse motorsailer with the same hull as the KONSORT 29.



.
