LAURIN 26

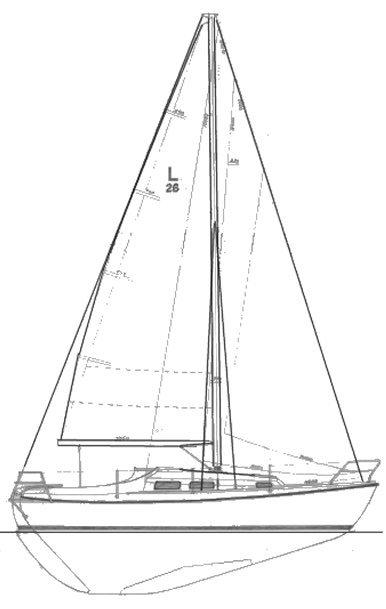

LAURIN 26 drawing

Sailboat Specifications


Hull Type:
Long Keel
Rigging Type:
Masthead Sloop
LOA:
26.08 ft / 7.95 m
LWL:
23.95 ft / 7.30 m
S.A. (reported):
290.00 ft2 / 26.94 m2
Beam:
8.20 ft / 2.50 m
Draft (max):
4.92 ft / 1.50 m
Draft (min):
Displacement:
6,614 lb / 3,000 kg
Ballast:
2,866 lb / 1,300 kg
S.A./Disp.:
13.21
Bal./Disp.:
43.33
Disp./Len.:
214.93
Construction:
FG
Ballast Type:
Lead
First Built:
1979
Last Built:
1981
# Built:
22
Builder:
Designer:
Arvid Laurin
Website:

Sailboat Calculations

S.A./Disp.:
13.21
Bal./Disp.:
43.33
Disp./Len.:
214.93
Comfort Ratio:
25.20
