MEDWAY 36 (WESTERLY)

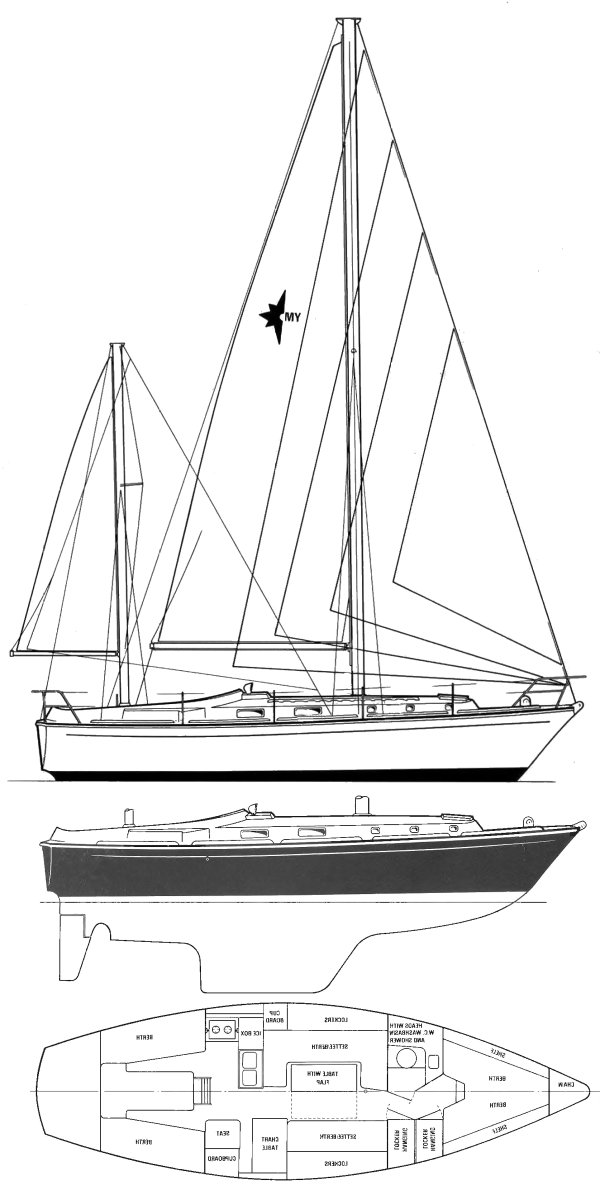

MEDWAY 36 (WESTERLY) drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Ketch
LOA:
35.75 ft / 10.90 m
LWL:
30.42 ft / 9.27 m
S.A. (reported):
502.00 ft2 / 46.64 m2
Beam:
11.16 ft / 3.40 m
Draft (max):
6.00 ft / 1.83 m
Draft (min):
Displacement:
16,125 lb / 7,314 kg
Ballast:
7,167 lb / 3,251 kg
S.A./Disp.:
12.63
Bal./Disp.:
44.45
Disp./Len.:
255.73
Construction:
FG
Ballast Type:
First Built:
1976
Last Built:
1978
# Built:
26
Builder:
Westerly Marine Contruction Ltd. (UK)
Designer:
Laurent Giles
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Volvo Penta
Model:
MD3B
Type:
Diesel
HP:
36
Water:
71 gals / 269 L
Fuel:
42 gals / 159 L

Sailboat Calculations

S.A./Disp.:
12.63
Bal./Disp.:
44.45
Disp./Len.:
255.73
Comfort Ratio:
31.32

Sailboat Links

Notes

Aft cockpit. Same hull as SOLWAY, GALWAY, and CONWAY.



.
