MORGAN 32

MORGAN 32 photo MORGAN 32 drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
31.92 ft / 9.73 m
LWL:
25.00 ft / 7.62 m
S.A. (reported):
493.00 ft2 / 45.80 m2
Beam:
11.50 ft / 3.51 m
Draft (max):
5.33 ft / 1.62 m
Draft (min):
Displacement:
11,000 lb / 4,990 kg
Ballast:
4,000 lb / 1,814 kg
S.A./Disp.:
16.00
Bal./Disp.:
36.36
Disp./Len.:
314.29
Construction:
FG
Ballast Type:
Lead
First Built:
1980
Last Built:
1986
# Built:
Builder:
Morgan Yachts (USA)
Designer:
Ted Brewer/Jack Corey
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Yanmar
Model:
2GM20
Type:
Diesel
HP:
20

Sailboat Calculations

S.A./Disp.:
16.00
Bal./Disp.:
36.36
Disp./Len.:
314.29
Comfort Ratio:
24.28

Rig and Sail Particulars

I:
41.50 ft / 12.65 m
J:
13.33 ft / 4.06 m
P:
36.00 ft / 10.97 m
E:
12.00 ft / 3.66 m
SPL/TPS:
ISP:
S.A. Fore:
276.60 ft2 / 25.70 m2
S.A. Main:
216.00 ft2 / 20.07 m2
S.A. Total (100% Fore + Main Triangles)
492.60 ft2 / 45.76 m2
S.A./Disp. (calc.):
15.99
Est. Forestay Len.:
43.59 ft / 13.29 m
Mast Height from DWL:
45.67 ft / 13.92 m

Sailboat Links

Notes

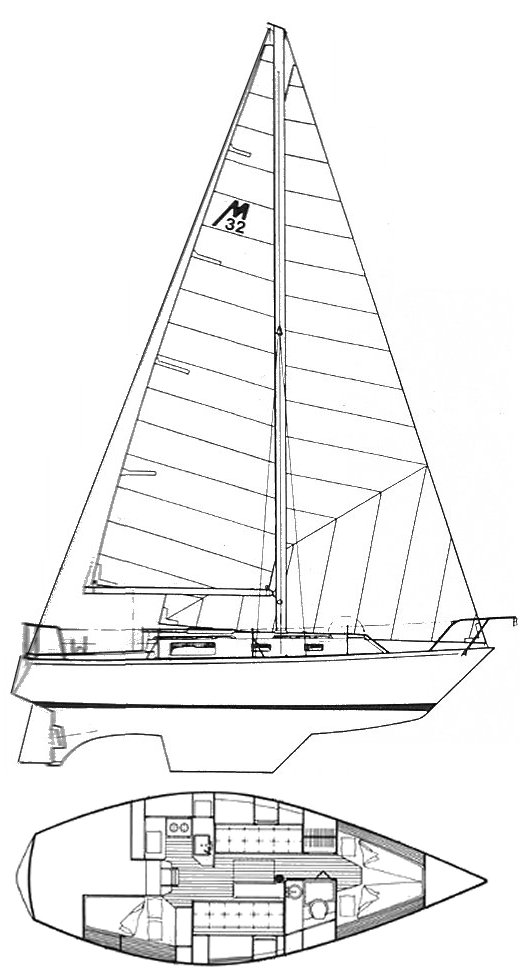

Shoal draft: 4'/1.22m (Drawing is of shoal draft version.) MORGAN 321, 322, 323 seem to be similar.



.
