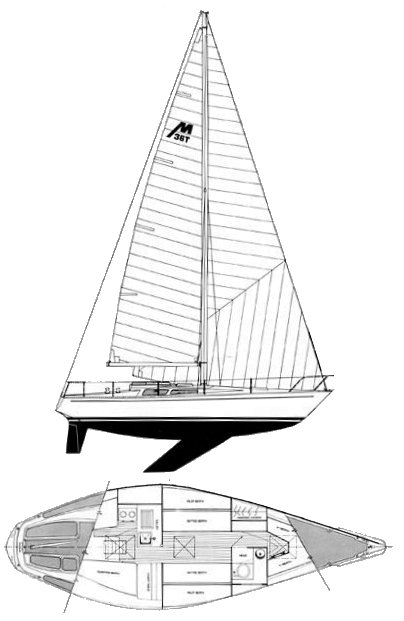

MORGAN 36T

Sailboat Specifications

both US imperial metric

Hull Type:

Fin with rudder on skeg

Rigging Type:

Masthead Sloop

LOA:

35.75 ft / 10.90 m

LWL:

30.00 ft / 9.14 m

Beam:

11.75 ft / 3.58 m

S.A. (reported):

626.00 ft² / 58.16 m²

Draft (max):

6.25 ft / 1.91 m

Displacement:

14,000 lb / 6,350 kg

Ballast:

6,100 lb / 2,767 kg

S.A./Disp.:

17.30

Bal./Disp.:

43.57

Disp./Len.:

231.48

Construction:

FG

Ballast Type:

Lead

First Built:

1973

Builder:

Morgan Yachts (USA)

Designer:

Charles Morgan

Auxiliary Power/Tanks (orig. equip.)

Make:

Universal

Model:

Atomic 4

Type:

Gas

HP:

30

Fuel:

18 gals / 68 L

Sailboat Calculations

Definitions

S.A./Disp.:

17.30

Bal./Disp.:

43.57

Disp./Len.:

231.48

Comfort Ratio:

25.62

Capsize Screening Formula:

1.95

S#:

2.39

Rig and Sail Particulars

help

I:

48.00 ft / 14.63 m

J:

15.00 ft / 4.57 m

P:

42.50 ft / 12.95 m

E:

12.50 ft / 3.81 m

S.A. Fore:

360.00 ft² / 33.45 m²

S.A. Main:

265.63 ft² / 24.68 m²

S.A. Total (100% Fore + Main Triangles)

625.63 ft² / 58.12 m²

S.A./Disp. (calc.):

17.29

Est. Forestay Len.:

50.29 ft / 15.33 m

Mast Height from DWL:

52.08 ft / 15.87 m

Accommodations

Water:

60 gals / 227 L

Sailboat Links

Designers:

Charles Morgan

Craig V. Walters

Builders:

Morgan Yachts

Associations:

One Ton Class

Download Boat Record:

PDF

Notes

Also called MORGAN 1 TON. Not to be confused with the a later HERITAGE ONE TON which is an entirely different design. (The IOR rating for one ton level racing was changed from 27.5 to 30.5 in 1984.)
