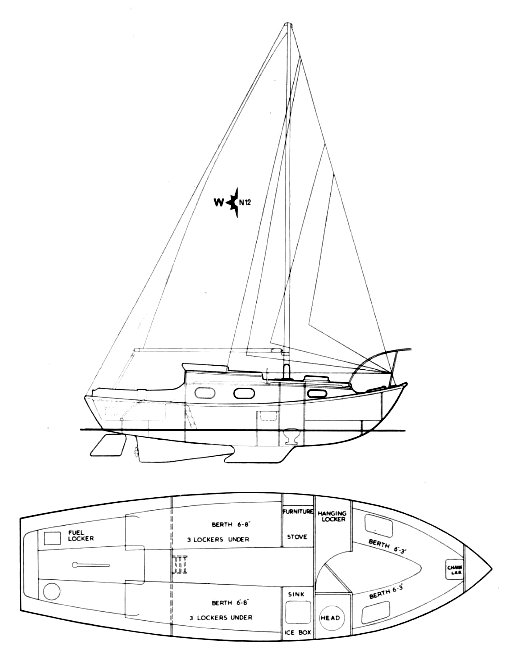

NOMAD 22 (WESTERLY)

Sailboat Specifications

both US imperial metric

Hull Type:

Twin Keel

Rigging Type:

Masthead Sloop

LOA:

22.25 ft / 6.78 m

LWL:

18.33 ft / 5.59 m

Beam:

7.42 ft / 2.26 m

S.A. (reported):

187.00 ft² / 17.37 m²

Draft (max):

2.25 ft / 0.69 m

Displacement:

3,150 lb / 1,429 kg

Ballast:

1,050 lb / 476 kg

S.A./Disp.:

13.96

Bal./Disp.:

33.33

Disp./Len.:

228.34

Construction:

FG

First Built:

1967

Last Built:

1969

# Built:

267

Builder:

Westerly Marine Construction Ltd. (UK)

Designer:

Dennis Rayner

Sailboat Calculations

Definitions

S.A./Disp.:

13.96

Bal./Disp.:

33.33

Disp./Len.:

228.34

Comfort Ratio:

17.28

Capsize Screening Formula:

2.03

S#:

2.05

Rig and Sail Particulars

help

I:

23.00 ft / 7.01 m

J:

7.00 ft / 2.13 m

P:

21.75 ft / 6.63 m

E:

9.75 ft / 2.97 m

S.A. Fore:

80.50 ft² / 7.48 m²

S.A. Main:

106.03 ft² / 9.85 m²

S.A. Total (100% Fore + Main Triangles)

186.53 ft² / 17.33 m²

S.A./Disp. (calc.):

13.92

Est. Forestay Len.:

24.04 ft / 7.33 m

Sailboat Links

Designers:

Denys Rayner

Builders:

Westerly Marine Construction Ltd.

Associations:

Westerly Owners Association

Download Boat Record:

PDF

Notes

The NOMAD is a reworking of the WESTERLY 22.
