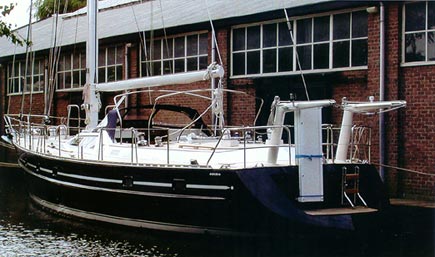

NORDIA 55 CRUISER

Sailboat Specifications

both US imperial metric

Hull Type:

Fin with rudder on skeg

Rigging Type:

Cutter

LOA:

55.12 ft / 16.80 m

LWL:

47.60 ft / 14.51 m

Beam:

15.42 ft / 4.70 m

S.A. (reported):

1,646.88 ft² / 153.00 m²

Draft (max):

6.23 ft / 1.90 m

Displacement:

59,525 lb / 27,000 kg

S.A./Disp.:

17.36

Disp./Len.:

246.39

Construction:

Aluminum

First Built:

1995

Last Built:

2005

# Built:

5

Builder:

Van Dam Nordia Shipyard (NED)

Designer:

Robert van Dam

Auxiliary Power/Tanks (orig. equip.)

Make:

Perkins

Type:

Diesel

HP:

135

Fuel:

317 gals / 1,200 L

Sailboat Calculations

Definitions

S.A./Disp.:

17.36

Disp./Len.:

246.39

Comfort Ratio:

48.29

Capsize Screening Formula:

1.58

Accommodations

Water:

396 gals / 1,500 L

Sailboat Links

Builders:

Van Dam Nordia Shipyard

Download Boat Record:

PDF

Notes

Available with deep keel: draft 2.4m / 7.8ft
