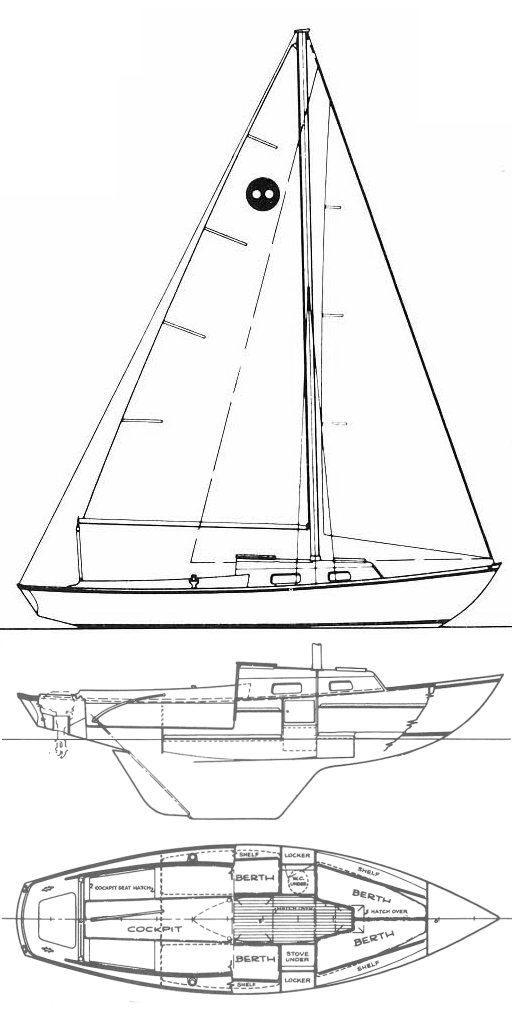

OUTLAW 26 (O'DAY )

Sailboat Specifications

both US imperial metric

Hull Type:

Fin Keel

Rigging Type:

Masthead Sloop

LOA:

26.00 ft / 7.92 m

LWL:

19.00 ft / 5.79 m

Beam:

8.00 ft / 2.44 m

S.A. (reported):

291.00 ft² / 27.03 m²

Draft (max):

4.25 ft / 1.30 m

Displacement:

5,050 lb / 2,291 kg

Ballast:

2,300 lb / 1,043 kg

S.A./Disp.:

15.86

Bal./Disp.:

45.54

Disp./Len.:

328.69

Construction:

FG

First Built:

1965

Last Built:

1968

# Built:

80

Builder:

O'Day (USA) (CAN)

Designer:

Philip Rhodes

Sailboat Calculations

Definitions

S.A./Disp.:

15.86

Bal./Disp.:

45.54

Disp./Len.:

328.69

Comfort Ratio:

23.17

Capsize Screening Formula:

1.87

S#:

1.46

Rig and Sail Particulars

help

I:

29.50 ft / 8.99 m

J:

9.80 ft / 2.99 m

P:

25.50 ft / 7.77 m

E:

11.50 ft / 3.51 m

S.A. Fore:

144.55 ft² / 13.43 m²

S.A. Main:

146.63 ft² / 13.62 m²

S.A. Total (100% Fore + Main Triangles)

291.18 ft² / 27.05 m²

S.A./Disp. (calc.):

15.87

Est. Forestay Len.:

31.09 ft / 9.47 m

Sailboat Links

Designers:

Philip Rhodes

Builders:

O'Day Corp.

Associations:

Mystic Seaport Museum

Download Boat Record:

PDF

Notes

Rhodes design #764

Tall rig:
I: 31.50' / 9.60m
J: 9.80' / 2.99m
P: 27.50' / 8.38m
E: 11.50' / 3.51m
