RENEGADE 27 (PEARSON)

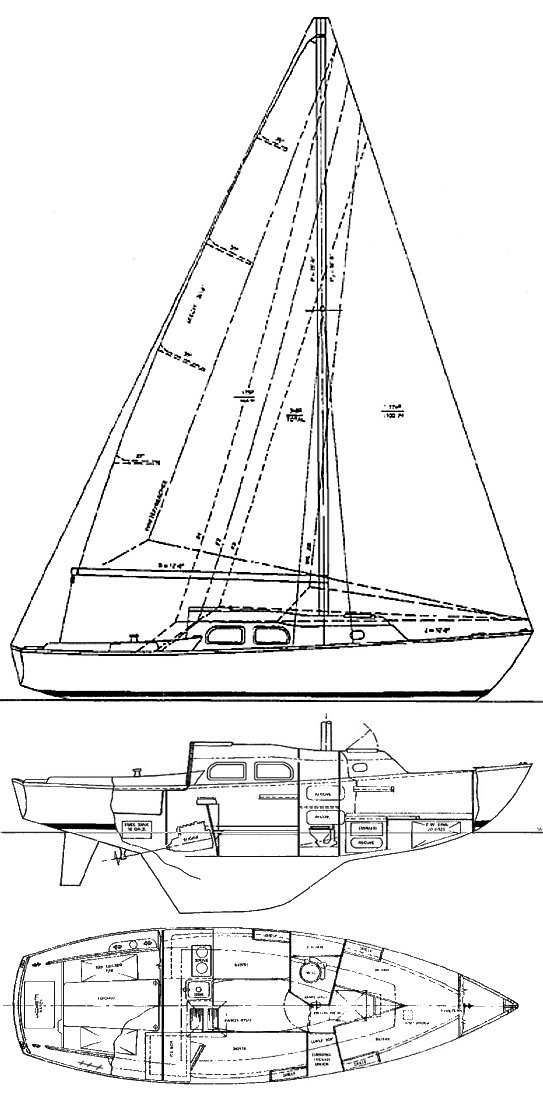

RENEGADE 27 (PEARSON) photo RENEGADE 27 (PEARSON) drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Masthead Sloop
LOA:
27.17 ft / 8.28 m
LWL:
21.00 ft / 6.40 m
S.A. (reported):
340.00 ft2 / 31.59 m2
Beam:
8.58 ft / 2.62 m
Draft (max):
4.25 ft / 1.30 m
Draft (min):
Displacement:
6,500 lb / 2,948 kg
Ballast:
2,100 lb / 953 kg
S.A./Disp.:
15.67
Bal./Disp.:
32.31
Disp./Len.:
313.33
Construction:
FG solid laminate
Ballast Type:
Lead
First Built:
1967
Last Built:
1969
# Built:
173
Builder:
Pearson Yachts (USA)
Designer:
William Shaw
Website:

Auxiliary Power/Tanks (orig. equip.)

Make:
Universal
Model:
Atomic 4
Type:
Gas
HP:
Water:
20 gals / 76 L
Fuel:
16 gals / 61 L

Sailboat Calculations

S.A./Disp.:
15.67
Bal./Disp.:
32.31
Disp./Len.:
313.33
Comfort Ratio:
25.09

Rig and Sail Particulars

I:
32.50 ft / 9.91 m
J:
10.33 ft / 3.15 m
P:
28.00 ft / 8.53 m
E:
12.33 ft / 3.76 m
SPL/TPS:
ISP:
S.A. Fore:
167.86 ft2 / 15.59 m2
S.A. Main:
172.62 ft2 / 16.04 m2
S.A. Total (100% Fore + Main Triangles)
340.48 ft2 / 31.63 m2
S.A./Disp. (calc.):
15.69
Est. Forestay Len.:
34.10 ft / 10.39 m

Sailboat Links

Designers:
Builders:

Notes

Later boats have a layout differing from the one shown here.



.
