ROB ROY 23

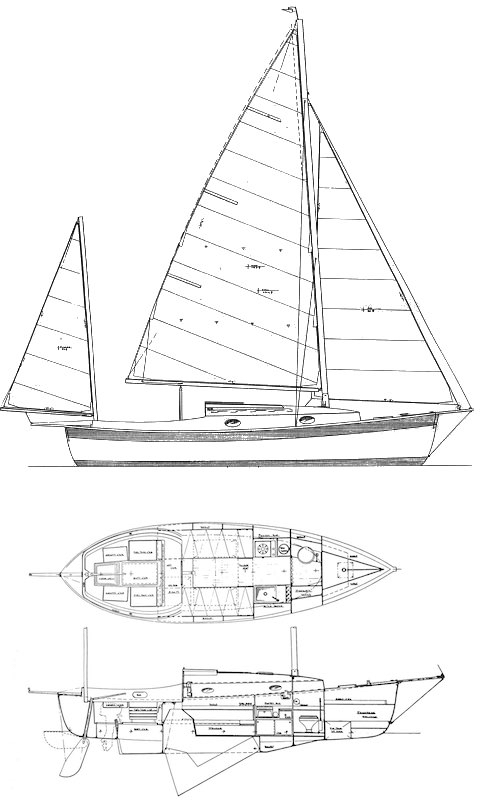

ROB ROY 23 photo ROB ROY 23 drawing

Sailboat Specifications


Hull Type:
Keel/Cbrd.
Rigging Type:
Fractional Yawl
LOA:
28.67 ft / 8.74 m
LWL:
20.83 ft / 6.35 m
Beam:
6.92 ft / 2.11 m
S.A. (reported):
264.00 ft2 / 24.53 m2
Draft (max):
4.25 ft / 1.30 m
Draft (min):
1.50 ft / 0.46 m
Displacement:
2,200 lb / 998 kg
Ballast:
650 lb / 295 kg
S.A./Disp.:
25.03
Bal./Disp.:
29.55
Disp./Len.:
108.67
Construction:
FG
First Built:
1980
Builder:
Marine Concepts (USA)
Designer:
Ted Brewer

Auxiliary Power/Tanks (orig. equip.)

Type:
Outboard well
Fuel:
12 gals / 45 L

Sailboat Calculations

S.A./Disp.:
25.03
Bal./Disp.:
29.55
Disp./Len.:
108.67
Comfort Ratio:
11.14
Capsize Screening Formula:
2.13

Rig and Sail Particulars

Mast Height from DWL:
29.50 ft / 8.99 m

Accommodations

Water:
15 gals / 55 L

Notes

LOD: 22.67 ft.
Also available with a gunther yawl rig. Mast above DWL: 24.42 ft.
