SOVEREIGN 32

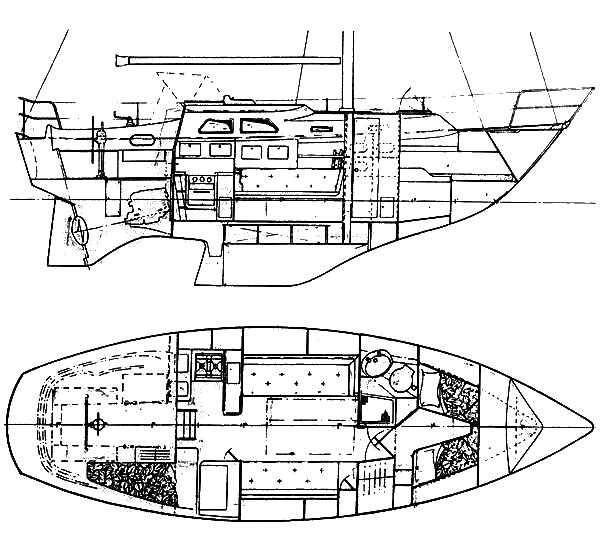

SOVEREIGN 32 drawing

Sailboat Specifications


Hull Type:
Fin Keel
Rigging Type:
Cutter
LOA:
32.00 ft / 9.75 m
LWL:
25.00 ft / 7.62 m
Beam:
10.50 ft / 3.20 m
S.A. (reported):
533.00 ft2 / 49.52 m2
Draft (max):
5.00 ft / 1.52 m
Displacement:
14,560 lb / 6,604 kg
Ballast:
6,496 lb / 2,947 kg
S.A./Disp.:
14.35
Bal./Disp.:
44.62
Disp./Len.:
416.00
Construction:
FG
First Built:
1971
Builder:
Sea Glass Ltd. (UK)
Designer:
Ian Anderson

Auxiliary Power/Tanks (orig. equip.)

Make:
Thornycroft
Type:
Diesel
HP:
35
Fuel:
30 gals / 114 L

Sailboat Calculations

S.A./Disp.:
14.35
Bal./Disp.:
44.62
Disp./Len.:
416.00
Comfort Ratio:
36.23
Capsize Screening Formula:
1.72
S#:
0.92

Accommodations

Water:
70 gals / 265 L
