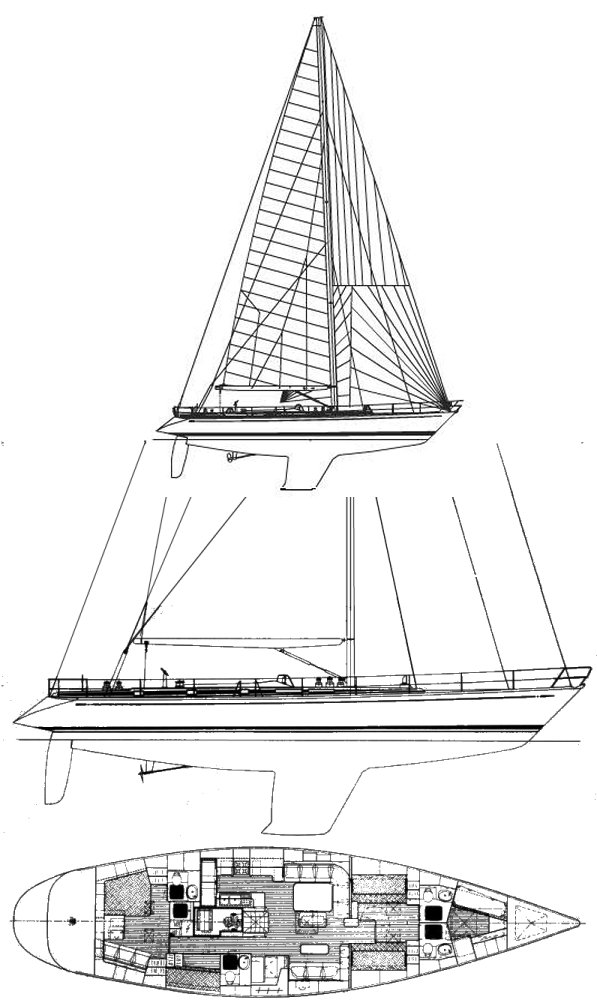

Sailboat Specifications

Definitions
Hull Type: Fin w/spade rudder
Rigging Type: Masthead Sloop
LOA: 67.68 ft / 20.63 m
LWL: 54.72 ft / 16.68 m
S.A. (reported): 2,164.00 ft² / 201.04 m²
Beam: 17.78 ft / 5.42 m
Displacement: 88,184.00 lb / 40,000 kg
Ballast: 35,274.00 lb / 16,000 kg
Max Draft: 10.83 ft / 3.30 m
Construction: FG
Ballast Type: Lead
First Built: 1992
Last Built: 2004
# Built: 24
Builder: Nautor
Designer: German Frers

Sailboat Calculations

Definitions
S.A. / Displ.: 17.56
Bal. / Displ.: 40.00
Disp: / Len: 240.27
Comfort Ratio: 50.36
Capsize Screening Formula: 1.60
S#: 2.32
Hull Speed: 9.91 kn
Pounds/Inch Immersion: 3,476.36 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Rig and Sail Particulars

HELP
I: 90.00 ft / 27.43 m
J: 25.90 ft / 7.89 m
P: 81.50 ft / 24.84 m
E: 24.50 ft / 7.47 m
S.A. Fore: 1,165.50 ft² / 108.28 m²
S.A. Main: 998.38 ft² / 92.75 m²
S.A. Total (100% Fore + Main Triangles): 2,163.88 ft² / 201.03 m²
S.A./Displ. (calc.): 17.56
Est. Forestay Length: 93.65 ft / 28.54 m

Sailboat Links

Designers: German Frers
Builders: Nautor (Swan sailboats)
Related Sailboats: SWAN 68 (TRAD)
Download Boat Record:

Notes

Also available with a traditional counter. See SWAN 68 (TRAD).
