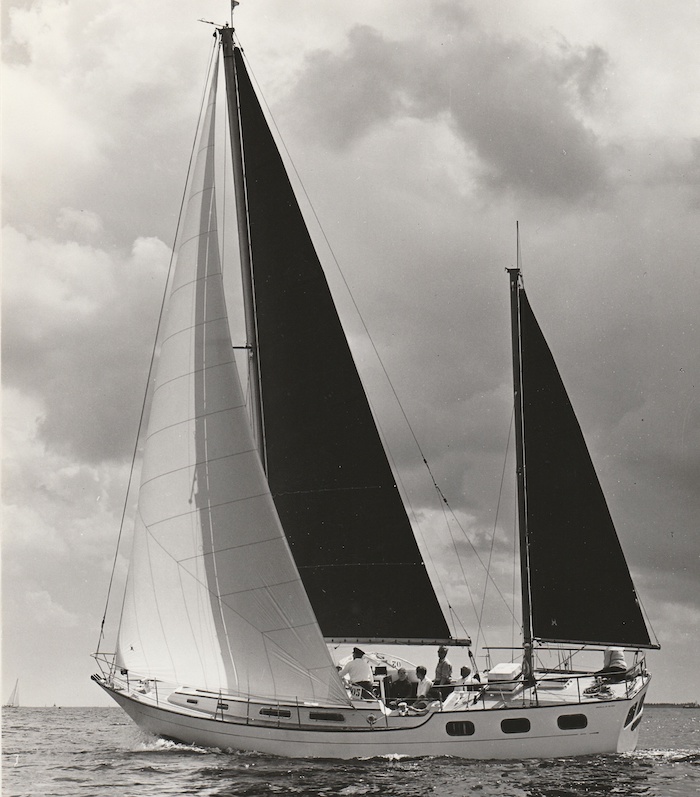

TRINTELLA IV

TRINTELLA IV
TRINTELLA IV

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Long Keel
Rigging Type: Masthead Ketch
LOA: 40.05 ft / 12.21 m
LWL: 32.16 ft / 9.80 m
S.A. (reported): 665.00 ft² / 61.78 m²
Beam: 11.33 ft / 3.45 m
Displacement: 24,640.00 lb / 11,177 kg
Ballast: 8,600.00 lb / 3,901 kg
Max Draft: 5.09 ft / 1.55 m
Construction: FG
Ballast Type: Lead
First Built: 1975
Builder: Anne Wever (NED)
Designer: E.G. van der Stadt

KLSC Leaderboard

KLSC Leaderboard

Auxiliary Power/Tanks (orig. equip.)

Make: Perkins
Type: Diesel
HP: 75
Fuel: 40 gals / 151 L

Accomodations

Water: 132 gals / 500 L

Sailboat Calculations

Definitions
S.A. / Displ.: 12.62
Bal. / Displ.: 34.90
Disp: / Len: 330.71
Comfort Ratio: 43.50
Capsize Screening Formula: 1.56
Hull Speed: 7.60 kn
Pounds/Inch Immersion: 1,301.94 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

Sailboat Links

Designers: E. G. Van de Stadt
Builders: Anne Wever Shipyard (NL)
Trintella Yachts
Associations: Trintella Owners
Download Boat Record:

Notes

Thanks to 'whalesongportugal' for providing corrected information.
