Sailboat Specifications
Hull Type:
Long keel w/trans. hung rudder
Rigging Type:
Fractional (7/8) Sloop
LOA:
27.07 ft / 8.25 m
LWL:
21.33 ft / 6.50 m
Beam:
8.20 ft / 2.50 m
S.A. (reported):
308.92 ft2 / 28.70 m2
Draft (max):
3.94 ft / 1.20 m
Displacement:
5,952 lb / 2,700 kg
Ballast:
2,205 lb / 1,000 kg
S.A./Disp.:
15.10
Bal./Disp.:
37.05
Disp./Len.:
273.81
Construction:
FG
Ballast Type:
Iron
First Built:
1970
# Built:
46
Builder:
Motala Boatyard (SWE)
Designer:
Arvid Laurin
Auxiliary Power/Tanks (orig. equip.)
Make:
Yanmar
Model:
MD6A
Type:
Diesel
HP:
10
Fuel:
17 gals / 65 L
Sailboat Calculations
S.A./Disp.:
15.10
Bal./Disp.:
37.05
Disp./Len.:
273.81
Comfort Ratio:
24.19
Capsize Screening Formula:
1.81
Accommodations
Headroom:
5.90 ft / 1.80 m
Water:
11 gals / 40 L
Notes

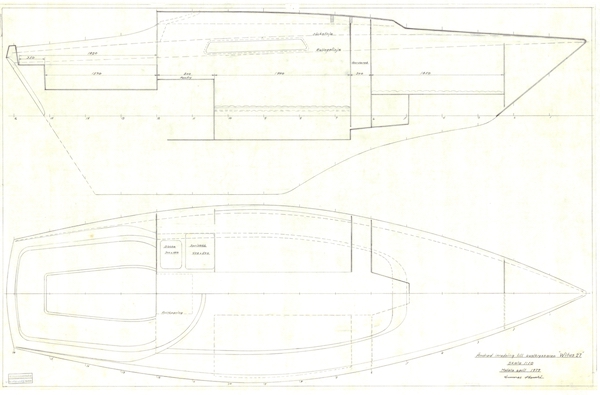

Specifications are from various sources and not confirmed.Hull length = 8m / 26.25 ftDrawing by Gunnar Hamré in 1979 courtesy of the Sjöhistoriska Museet which can be found here: https://digitaltmuseum.se/011024769447/ritningPhoto credit unknown.Thanks to Aernoudt Bottemanne for letting us know about this model and sending some information as well.
