YNGLING

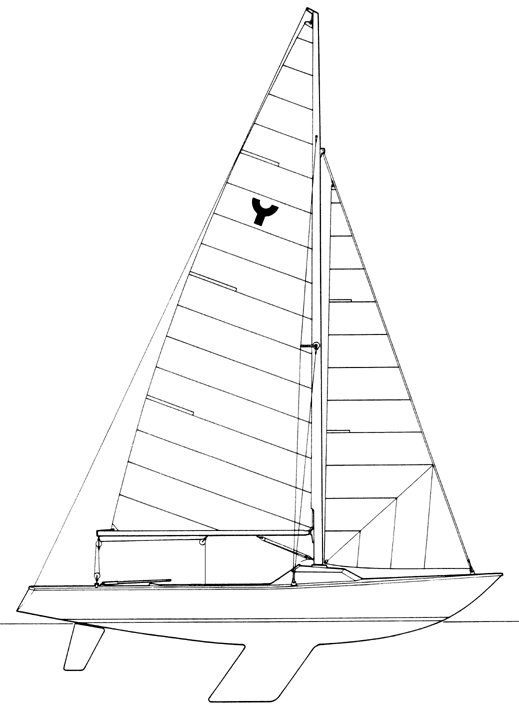

YNGLING insignia YNGLING drawing

Sailboat Specifications


Hull Type:
Fin w/spade rudder
Rigging Type:
Fractional Sloop
LOA:
20.83 ft / 6.35 m
LWL:
15.42 ft / 4.70 m
S.A. (reported):
156.00 ft2 / 14.49 m2
Beam:
5.67 ft / 1.73 m
Draft (max):
3.44 ft / 1.05 m
Draft (min):
Displacement:
1,323 lb / 600 kg
Ballast:
683 lb / 310 kg
S.A./Disp.:
20.75
Bal./Disp.:
51.63
Disp./Len.:
161.09
Construction:
FG
Ballast Type:
Lead
First Built:
1967
Last Built:
# Built:
4500
Builder:
Designer:
Jan Linge
Website:

Sailboat Calculations

S.A./Disp.:
20.75
Bal./Disp.:
51.63
Disp./Len.:
161.09
Comfort Ratio:
11.88

Rig and Sail Particulars

I:
18.70 ft / 5.70 m
J:
6.56 ft / 2.00 m
P:
22.31 ft / 6.80 m
E:
8.53 ft / 2.60 m
SPL/TPS:
ISP:
S.A. Fore:
61.34 ft2 / 5.70 m2
S.A. Main:
95.15 ft2 / 8.84 m2
S.A. Total (100% Fore + Main Triangles)
156.49 ft2 / 14.54 m2
S.A./Disp. (calc.):
20.82
Est. Forestay Len.:
19.82 ft / 6.04 m

Sailboat Links

Notes

Olympic class for women sailors from 2004,(Athen, Greece) to 2008 (Beijing, Chine).



.
