Sailboat Specifications

Definitions
Hull Type: Fin w/spade rudder
Rigging Type: Masthead Sloop
LOA: 32.08 ft / 9.78 m
LWL: 27.75 ft / 8.46 m
S.A. (reported): 459.00 ft² / 42.64 m²
Beam: 10.00 ft / 3.05 m
Displacement: 12,025.00 lb / 5,454 kg
Ballast: 4,680.00 lb / 2,123 kg
Max Draft: 5.75 ft / 1.75 m
Construction: FG
First Built: 1972
# Built: 20
Builder: Paceship Yachts (CAN)
Designer: Britton Chance

Sailboat Calculations

Definitions
S.A. / Displ.: 14.04
Bal. / Displ.: 38.92
Disp: / Len: 251.22
Comfort Ratio: 29.79
Capsize Screening Formula: 1.75
S#: 1.86
Hull Speed: 7.06 kn
Pounds/Inch Immersion: 991.54 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

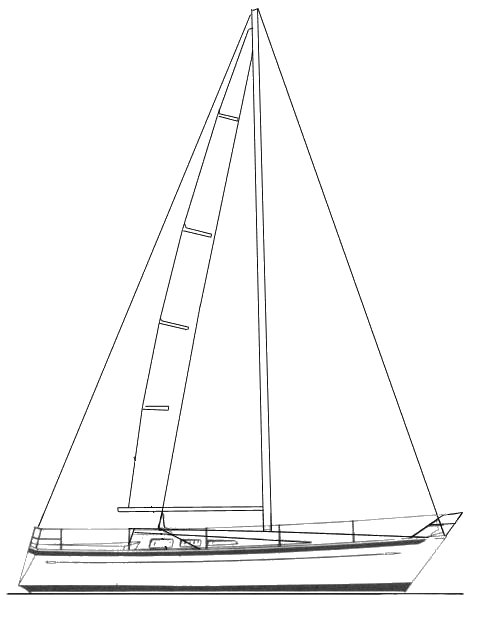

Rig and Sail Particulars

HELP
I: 41.67 ft / 12.70 m
J: 13.02 ft / 3.97 m
P: 37.02 ft / 11.28 m
E: 10.12 ft / 3.08 m
S.A. Fore: 271.27 ft² / 25.20 m²
S.A. Main: 187.32 ft² / 17.40 m²
S.A. Total (100% Fore + Main Triangles): 458.59 ft² / 42.60 m²
S.A./Displ. (calc.): 14.03
Est. Forestay Length: 43.66 ft / 13.31 m

Sailboat Links

Designers: Britton Chance
Builders: Paceship Yachts Ltd.
Robertson and Sons Ltd.
Wauquiez, Henri (Chantier)
Associations: IOR 3/4 ton
Related Sailboats: CHANCE 32/28 (PACESHIP)
Download Boat Record:

Notes

IOR 3/4 ton.
