CHANCE 32/28 (PACESHIP)

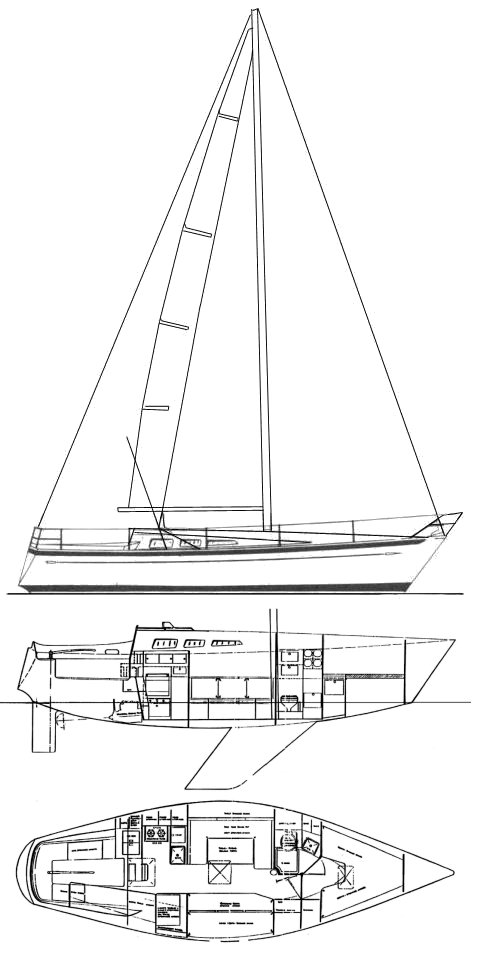

CHANCE 32/28 (PACESHIP) drawing

Sailboat Specifications


Hull Type:
Fin with rudder on skeg
Rigging Type:
Masthead Sloop
LOA:
32.08 ft / 9.78 m
LWL:
27.75 ft / 8.46 m
S.A. (reported):
459.00 ft2 / 42.64 m2
Beam:
10.00 ft / 3.05 m
Draft (max):
5.75 ft / 1.75 m
Draft (min):
Displacement:
12,025 lb / 5,454 kg
Ballast:
4,680 lb / 2,123 kg
S.A./Disp.:
14.04
Bal./Disp.:
38.92
Disp./Len.:
251.22
Construction:
FG
Ballast Type:
First Built:
1972
Last Built:
1974
# Built:
40
Builder:
Paceship Yachts (CAN)
Designer:
Britton Chance Jr.
Website:

Auxiliary Power/Water (orig. equip.)

Make:
Universal
Model:
Atomic 4
Type:
Gas
HP:
30

Sailboat Calculations

S.A./Disp.:
14.04
Bal./Disp.:
38.92
Disp./Len.:
251.22
Comfort Ratio:
29.79

Rig and Sail Particulars

I:
41.67 ft / 12.70 m
J:
13.02 ft / 3.97 m
P:
37.02 ft / 11.28 m
E:
10.12 ft / 3.08 m
SPL/TPS:
ISP:
S.A. Fore:
271.27 ft2 / 25.20 m2
S.A. Main:
187.32 ft2 / 17.40 m2
S.A. Total (100% Fore + Main Triangles)
458.59 ft2 / 42.60 m2
S.A./Disp. (calc.):
14.03
Est. Forestay Len.:
43.66 ft / 13.31 m

Sailboat Links

Designers:
Related Sailboats:

Notes

Also known as the CHANCE 32. The same design was also built by: Chantier Henri Wanquiez, France Robertson's of Sanbank, Scotland (finishing) IOR 3/4 ton.



.
