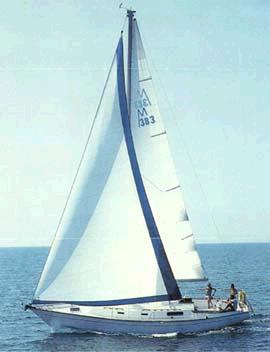

MORGAN 383/384

Sailboat Specifications

both US imperial metric

Hull Type:

Fin with rudder on skeg

Rigging Type:

Masthead Sloop

LOA:

38.33 ft / 11.68 m

LWL:

30.50 ft / 9.30 m

Beam:

12.00 ft / 3.66 m

S.A. (reported):

682.00 ft² / 63.36 m²

Draft (max):

5.00 ft / 1.52 m

Displacement:

18,000 lb / 8,165 kg

Ballast:

6,800 lb / 3,084 kg

S.A./Disp.:

15.95

Bal./Disp.:

37.78

Disp./Len.:

283.22

Construction:

FG w/ balsa deck & airex topsides

First Built:

1982

# Built:

200

Builder:

Morgan Yachts (USA)

Designer:

Ted Brewer

Auxiliary Power/Tanks (orig. equip.)

Make:

Perkins

Model:

4-108

Type:

Diesel

Sailboat Calculations

Definitions

S.A./Disp.:

15.95

Bal./Disp.:

37.78

Disp./Len.:

283.22

Comfort Ratio:

30.94

Capsize Screening Formula:

1.83

S#:

1.79

Rig and Sail Particulars

help

I:

50.00 ft / 15.24 m

J:

16.25 ft / 4.95 m

P:

42.50 ft / 12.95 m

E:

13.00 ft / 3.96 m

S.A. Fore:

406.25 ft² / 37.74 m²

S.A. Main:

276.25 ft² / 25.66 m²

S.A. Total (100% Fore + Main Triangles)

682.50 ft² / 63.41 m²

S.A./Disp. (calc.):

15.96

Est. Forestay Len.:

52.57 ft / 16.02 m

Sailboat Links

Designers:

Edward S. Brewer

Builders:

Morgan Yachts

Related Sailboats:

MORGAN 382

Download Boat Record:

PDF

Notes

In 1982, the MORGAN 382 was renamed the MORGAN 383. It featured a taller rig, shorter boom and modified rudder. Some time later it became the 384, with mostly cosmetic changes. About 100 of each of these later models were built.
See MORGAN 382.
