NIMROD 18 (WESTERLY)

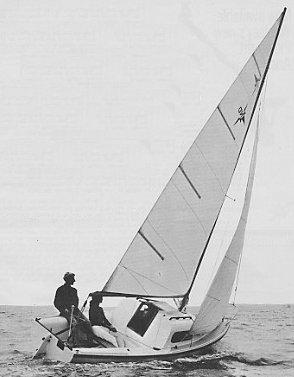

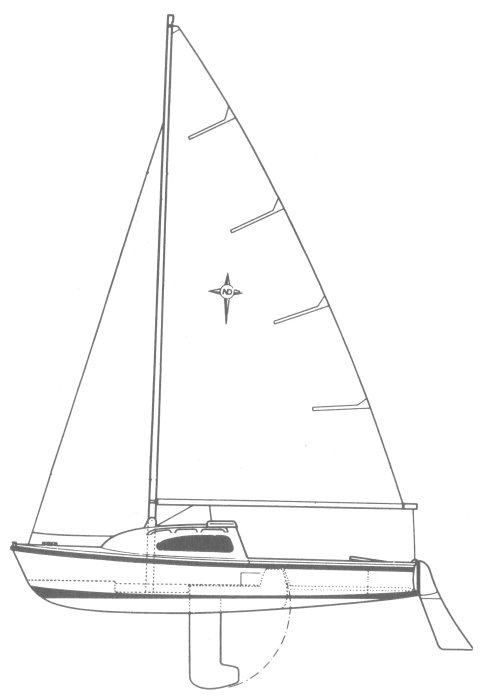

NIMROD 18 (WESTERLY) photo NIMROD 18 (WESTERLY) drawing

Sailboat Specifications


Hull Type:
Rigging Type:
LOA:
17.75 ft / 5.41 m
LWL:
15.50 ft / 4.72 m
S.A. (reported):
140.00 ft2 / 13.01 m2
Beam:
6.50 ft / 1.98 m
Draft (max):
4.00 ft / 1.22 m
Draft (min):
0.67 ft / 0.20 m
Displacement:
1,050 lb / 476 kg
Ballast:
260 lb / 118 kg
S.A./Disp.:
21.72
Bal./Disp.:
24.76
Disp./Len.:
125.88
Construction:
FG
Ballast Type:
First Built:
1968
Last Built:
1978
# Built:
230
Builder:
Westerly Marine Ltd./Anglo Marine (UK)
Designer:
Ian Proctor
Website:

Sailboat Calculations

S.A./Disp.:
21.72
Bal./Disp.:
24.76
Disp./Len.:
125.88
Comfort Ratio:
8.28

Sailboat Links

Notes

Fin keel and twin keel models also available. (186 hulls from Westerly Marine. It is thought that as many as 40 more were built after 1978 by at least 2 other builders from the same tooling.)



.
