PEDRICK 38 (CHEOY LEE)

PEDRICK 38 (CHEOY LEE)
PEDRICK 38 (CHEOY LEE)

Beta Marine

Beta Marine

Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 38.33 ft / 11.68 m
LWL: 30.83 ft / 9.40 m
S.A. (reported): 721.00 ft² / 66.98 m²
Beam: 11.80 ft / 3.60 m
Displacement: 19,025.00 lb / 8,630 kg
Ballast: 6,700.00 lb / 3,039 kg
Max Draft: 6.00 ft / 1.83 m
Construction: FG
Ballast Type: Lead
First Built: 1980
Builder: Cheoy Lee Shipyard Ltd.(HK)
Designer: David Pedrick

Auxiliary Power/Tanks (orig. equip.)

Make: Universal
Type: Diesel
Fuel: 47 gals / 178 L

Accomodations

Water: 138 gals / 522 L

Sailboat Calculations

Definitions
S.A. / Displ.: 16.25
Bal. / Displ.: 35.22
Disp: / Len: 289.84
Comfort Ratio: 33.21
Capsize Screening Formula: 1.77
S#: 1.76
Hull Speed: 7.44 kn
Pounds/Inch Immersion: 1,299.88 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

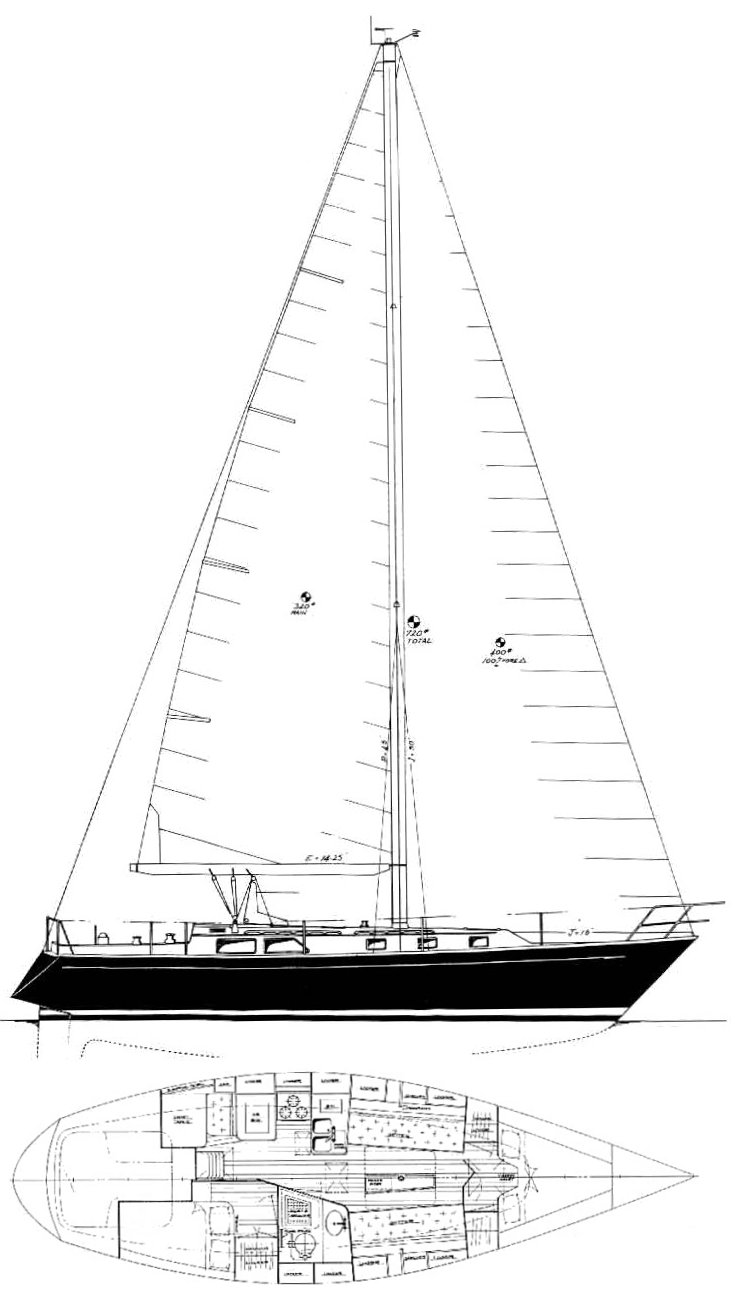

Rig and Sail Particulars

HELP
I: 50.00 ft / 15.24 m
J: 16.00 ft / 4.88 m
P: 45.00 ft / 13.72 m
E: 14.25 ft / 4.34 m
S.A. Fore: 400.00 ft² / 37.16 m²
S.A. Main: 320.63 ft² / 29.79 m²
S.A. Total (100% Fore + Main Triangles): 720.63 ft² / 66.95 m²
S.A./Displ. (calc.): 16.24
Est. Forestay Length: 52.50 ft / 16.00 m

Sailboat Links

Designers: David Pedrick
Builders: Cheoy Lee Shipyard
Associations: Cheoy Lee Association Web Site
Download Boat Record:

Notes

Similar to a model sold as the GOLDEN WAVE 38?.
