Sailboat Specifications

Definitions
Hull Type: Fin with rudder on skeg
Rigging Type: Masthead Sloop
LOA: 40.35 ft / 12.30 m
LWL: 34.12 ft / 10.40 m
S.A. (reported): 732.00 ft² / 68.01 m²
Beam: 12.80 ft / 3.90 m
Displacement: 17,200.00 lb / 7,802 kg
Ballast: 7,600.00 lb / 3,447 kg
Max Draft: 6.23 ft / 1.90 m
Construction: FG
First Built: 1989
# Built: 35
Builder: Cantiere Zuanelli (ITA)
Designer: Sparkman & Stephens

Auxiliary Power/Tanks (orig. equip.)

Make: Volvo Penta
Type: Diesel
Fuel: 60 gals / 227 L

Accomodations

Water: 106 gals / 401 L

Sailboat Calculations

Definitions
S.A. / Displ.: 17.64
Bal. / Displ.: 44.19
Disp: / Len: 193.31
Comfort Ratio: 24.77
Capsize Screening Formula: 1.99
S#: 2.90
Hull Speed: 7.83 kn
Pounds/Inch Immersion: 1,560.51 pounds/inch

calculation mobile

2 nd ad half width

3rd ad full width

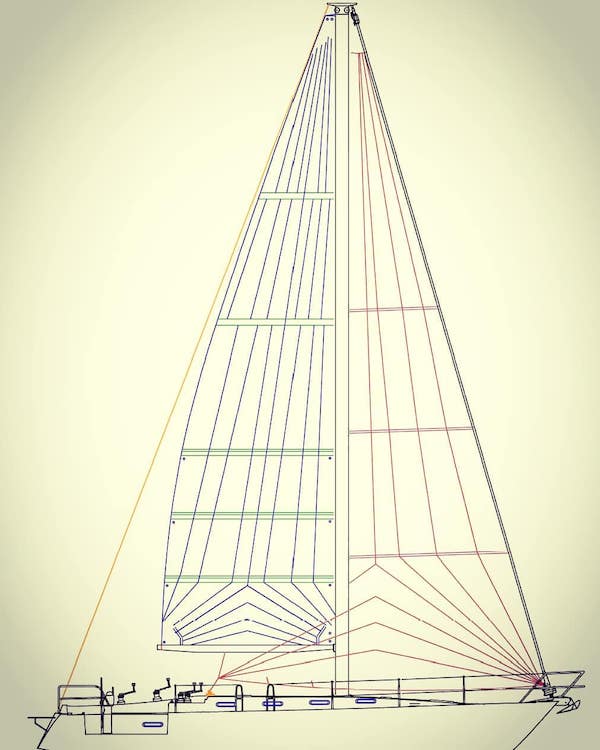

Rig and Sail Particulars

HELP
I: 52.98 ft / 16.15 m
J: 16.01 ft / 4.88 m
P: 47.57 ft / 14.50 m
E: 13.52 ft / 4.12 m
S.A. Fore: 424.10 ft² / 39.40 m²
S.A. Main: 321.57 ft² / 29.87 m²
S.A. Total (100% Fore + Main Triangles): 745.67 ft² / 69.28 m²
S.A./Displ. (calc.): 17.97
Est. Forestay Length: 55.35 ft / 16.87 m

Sailboat Links

Designers: Sparkman & Stephens
Builders: Zuanelli (Cantiere Zuanelli)
Related Sailboats: TARTAN 40
Download Boat Record:

Notes

S&S design # 2481.1 Same hull and rig design as TARTAN 40.
